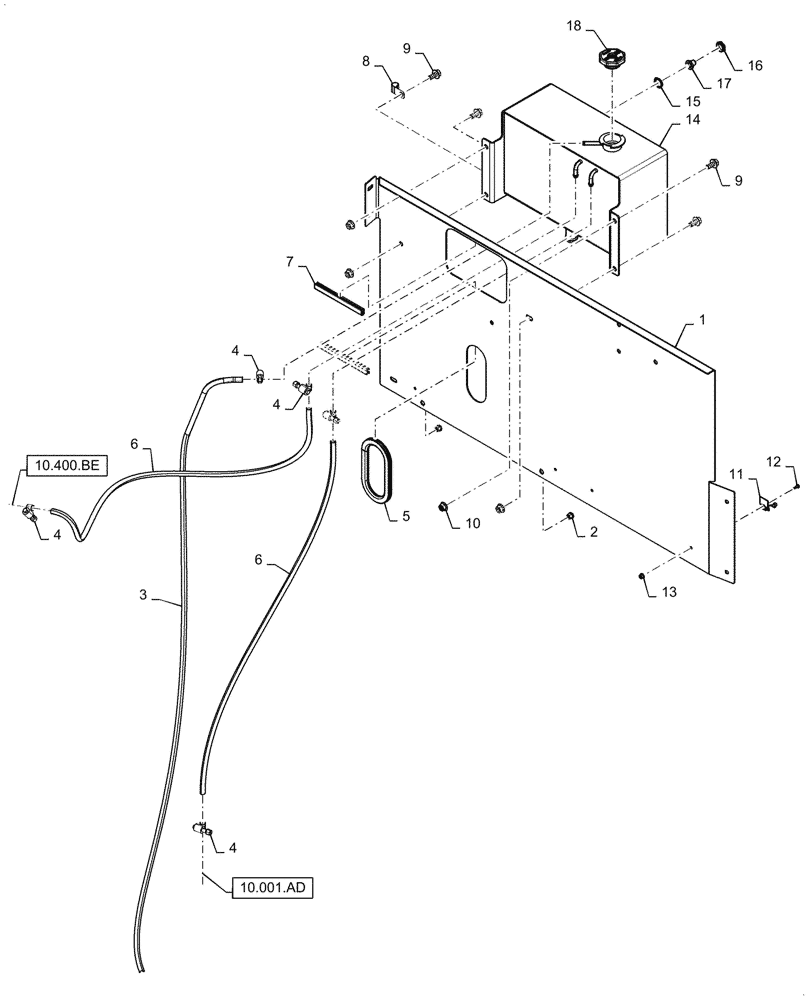

Запчасти Case IH 7088 (10.400.BI[02]) - COOLANT EXPANSION RESERVOIR (10) - ENGINE

1

87627883

SHEET ASSY.

Engine Cover, Rear, Years: -01-DEC-10

1шт.

1

84180620

SHEET ASSY.

Engine Cover, Rear, Start Year: 01-DEC-10

1шт.

2

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

2шт.

3

86989959

LARGE HOSE,8mm ID x 7620mm L

Bulk, Radiator Drain

1шт.

4

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

5шт.

5

87063C3

SEAL

Edge Trim

1шт.

6

87308562

HOSE,7.87mm ID x 960mm L

Deaeration

2шт.

7

1327979C1

MOLDING

Edge Trim

2шт.

8

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

9

857-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

4шт.

10

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

11

167800C1

CLIP

Door Retainer

2шт.

12

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

2шт.

13

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

14

87703236

TANK

Deaeration

1шт.

15

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

16

86990537

NUT,15/16"

Lens Retainer

1шт.

17

86990536

LENS

Sight

1шт.

18

87109814

FILLER CAP

Radiator

1шт.
