(10.400.BI[01]) - ENGINE COOLING SYSTEM LINE

Запчасти Case IH 7088 (10.400.BI[01]) - ENGINE COOLING SYSTEM LINE (10) - ENGINE

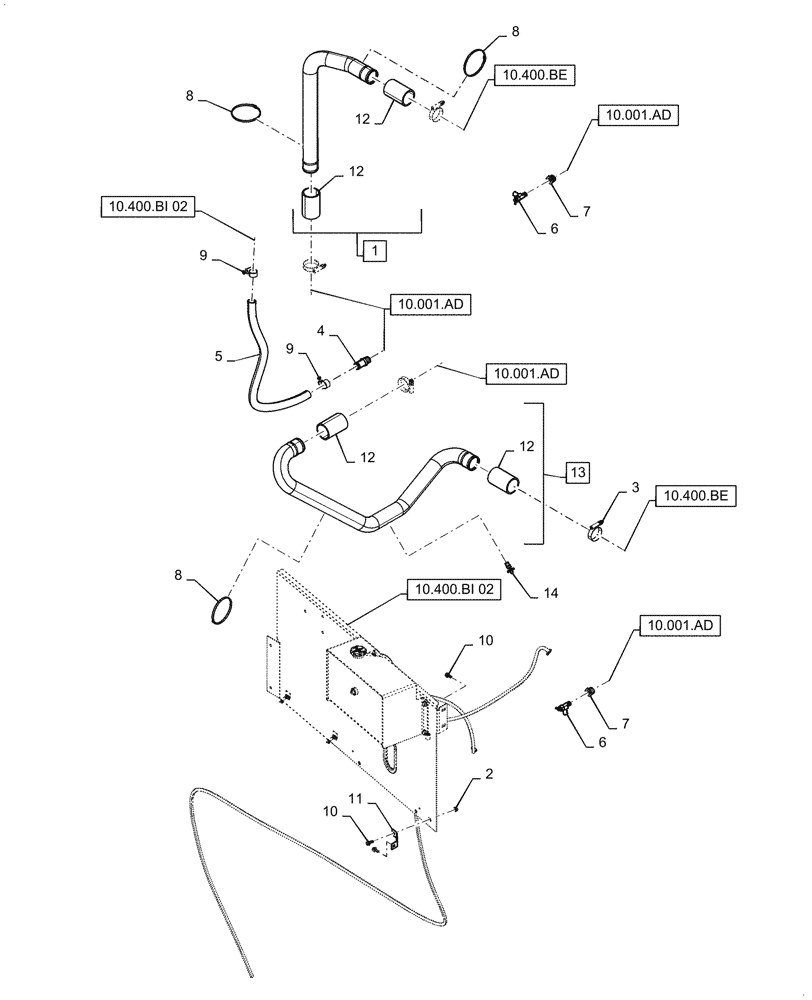

Схема запчастей Case IH 7088 - (10.400.BI[01]) - ENGINE COOLING SYSTEM LINE (10) - ENGINE
10.400.bi 02
10
12
12
8
10
13
4
6
8
6
12
7
9
3
14
12
1
2
9
7
11
8
5
10.400.be
10.400.be
10.001.ad
10.001.ad
10.001.ad
10.001.ad
10.001.ad
10.400.bi 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87385493

TUBE,606, 343 mm L

Upper Radiator, Incl 12

1шт.

2

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

3

214-3248

HOSE CLAMP,57mm - 79mm

Worm Gear

4шт.

4

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

1шт.

5

87308560

HOSE,25.4mm ID x 1005mm L

Deaeration

1шт.

6

301803R1

SHUT-OFF VALVE

90°, Engine

2шт.

7

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

2шт.

8

306132C1

CABLE TIE,14.5" L

3шт.

9

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

2шт.

10

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

11

87388443

BRACKET

Engine Shield

1шт.

12

87402765

HOSE,57.20mm ID x 101.60mm, SAEJ20, SAE20R4 Class D-1

Radiator

4шт.

13

87385496

HEATER TUBE

Lower Radiator, Incl 12

1шт.

14

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.
