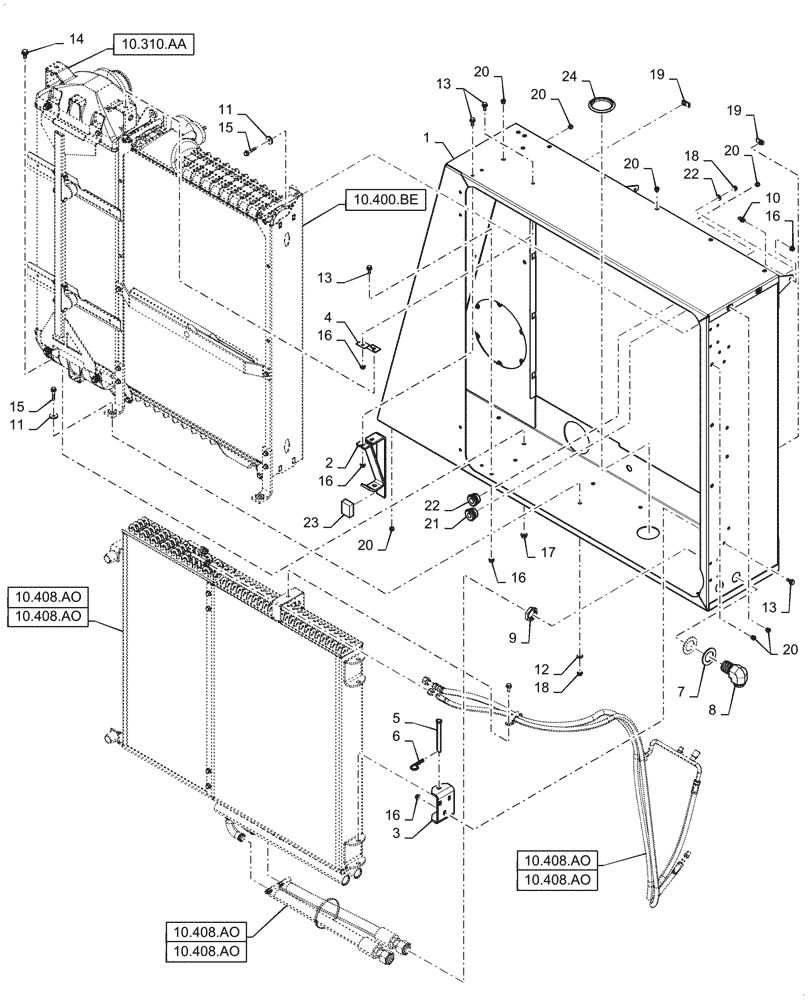

Запчасти Case IH 7088 (10.400.BF[02]) - COOLER BOX (10) - ENGINE

1

87679524

ASSEMBLY

Cooler Box

1шт.

2

87423364

SUPPORT

Oil Cooler Lower

2шт.

3

87429534

BRACKET

Oil Cooler Side

2шт.

4

413012A1

BRACKET

CAC Mounting

1шт.

5

439-5880

HEADED PIN,1/2" x 5"

2шт.

6

480523R1

HAIR PIN COTTER

Quick Attach

2шт.

7

495-81224

WASHER,38.89mm ID x 63.5mm OD x 3.35mm Thk

4шт.

8

201-363

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

2шт.

9

201-908

BHD LOCK NUT,Blkhd, 1 7/16"-12

2шт.

10

83952214

BALL STUD,M8 x 29.5mm OAL

2шт.

11

140041

WASHER,M8 x 28mm OD x 3mm Thk

4шт.

12

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

13

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

17шт.

14

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

15

857-8040

BOLT

Flange

4шт.

16

86507066

FLANGE NUT,M8 x 1.25, Cl 10

19шт.

17

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

18

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

19

410009A1

SPRING NUT

Clip, Barrel Type

8шт.

20

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

23шт.

21

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

22

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

23

187884C1

SEALING STRIP,50mm L

2шт.

24

87000778

PLUG,89mm OD

Clean Out Hole

1шт.
