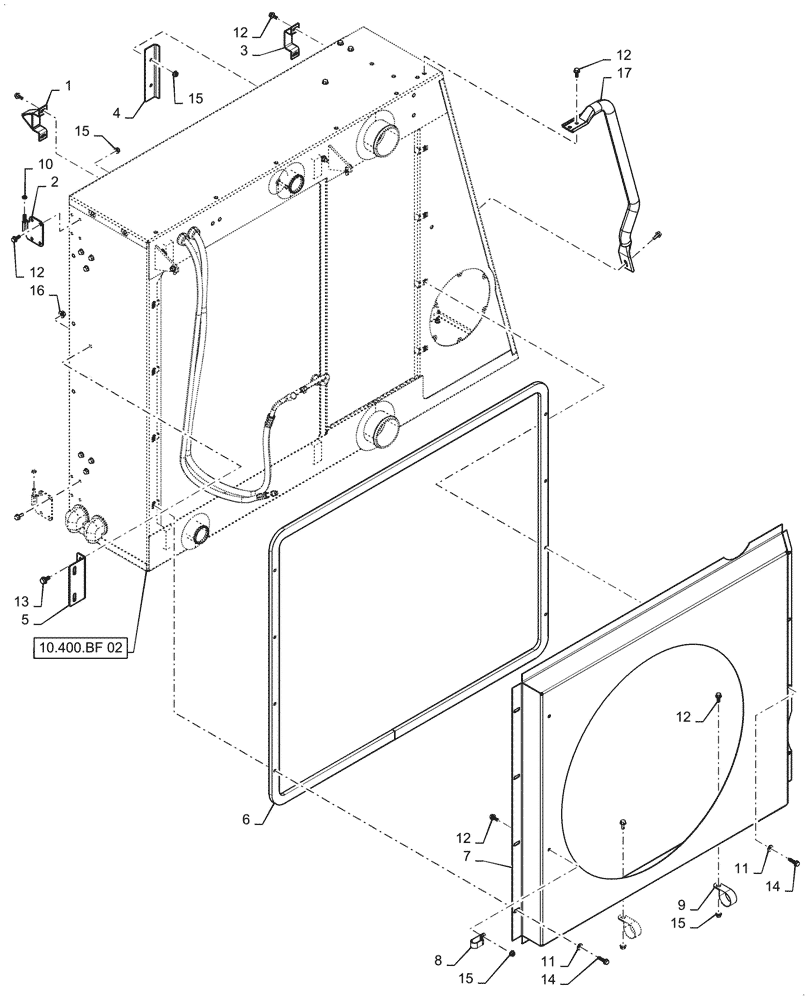

Запчасти Case IH 7088 (10.400.BF[01]) - COOLER BOX ASSY (10) - ENGINE

1

84197269

BRACKET

Cooler Door Latch

1шт.

2

87654391

HINGE

Cooler Door Lower

2шт.

3

87684093

BRACKET

Cooler Door Latch

1шт.

4

87589924

ANGLE

Oil Cooler Latch Support

2шт.

5

87595611

BRACKET

Vertical Hinge Support, Rear

1шт.

6

87415942

FOAM INSULATION,31.8mm W x 4215mm L x 12.7mm Thk

1шт.

7

87617160

SHEET METAL

Engine Fan Shroud, 5088/6088

1шт.

7

87314145

SHEET ASSY.

Engine Fan Shroud, 7088

1шт.

8

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

2шт.

9

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

2шт.

10

86985597

WASHER,8.1mm ID x 13.5mm OD x 2mm Thk

2шт.

11

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

12

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

21шт.

13

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

14

84209928

SCREW

Self Tapping

8шт.

15

86507066

FLANGE NUT,M8 x 1.25, Cl 10

16шт.

16

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

17

87671877

HANDRAIL

Cooler Box

1шт.
