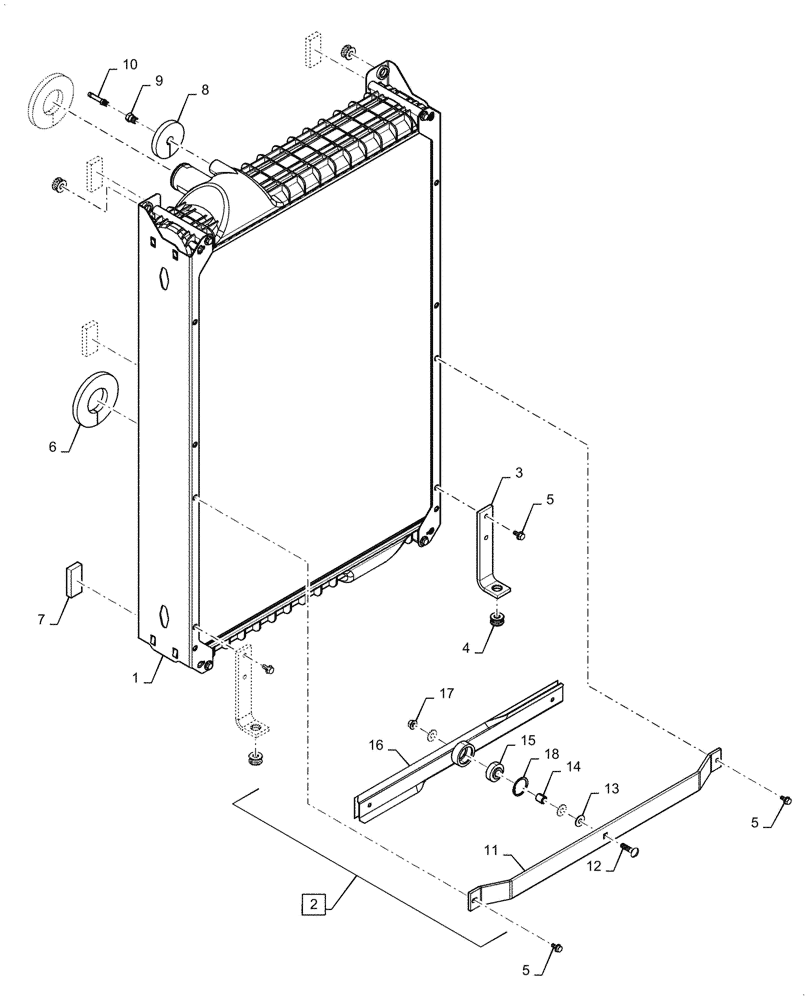

Запчасти Case IH 7088 (10.400.BE) - RADIATOR & RELATED PARTS (10) - ENGINE

1

87302088

RADIATOR

Engine

1шт.

2

87432132

FAN

Wiper, Incl 11 - 18

1шт.

3

411572A1

BRACKET

Isolator Mount

2шт.

4

434177A1

ISOLATOR

Center Bonded

4шт.

5

87681207

BOLT,M8 x 24.1mm, Cl 10.9

6шт.

6

87420911

FOAM INSULATION,31.8mm W x 340mm L x 12.7mm Thk

Seal

2шт.

7

87420912

SEAL

Radiator

4шт.

8

87303263

FOAM INSULATION

Seal

1шт.

9

217-1034

REDUCER,1/4" - 18 Male NPTF x 1/8" - 27 Female NPTF

1шт.

10

241173A1

FITTING

Oriface

1шт.

11

87432400

SUPPORT

Radiator Wiper

1шт.

12

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

13

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

3шт.

14

87404683

BUSHING

Wiper Blade

1шт.

15

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

1шт.

16

87432607

BLADE

Wiper, Upper

1шт.

17

231-5146

FLANGE NUT,3/8"-16

1шт.

18

100-21156

SNAP RING,1.562", Int, #156

1шт.
