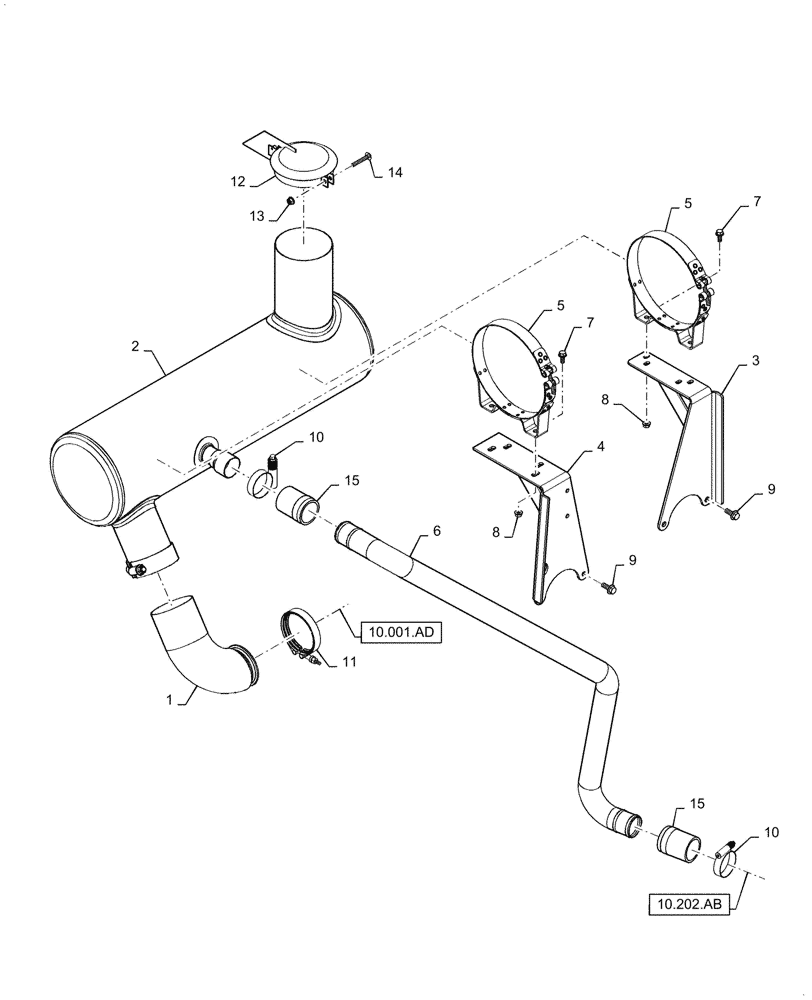

Запчасти Case IH 7088 (10.254.AI) - EXHAUST SYSTEM W/ MUFFLER (10) - ENGINE

1

87301604

ELBOW

Engine Exhaust

1шт.

2

87301603

MUFFLER,Aspirated

Exhaust, VAR. 425022

1шт.

2

87729009

MUFFLER

Spark Arrestor, VAR. 425023

1шт.

3

87310387

BRACKET

Engine Exhaust

1шт.

4

87311461

BRACKET

Muffler Rear

1шт.

5

87301605

CLAMP,228.6mm ID

2шт.

6

87386774

TUBE

Aspirator, Incl 15

1шт.

7

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

9

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

4шт.

10

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

2шт.

11

A170807

CLAMP,102mm ID

Turbo

1шт.

12

86997809

COVER

Exhaust Cap

1шт.

13

86619801

FLANGE NUT,M8 x 1.25, Cl 8

1шт.

14

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

1шт.

15

87308234

HOSE,32mm ID - 66.67mm ID x 16mm W, Unlined

Aspirator

2шт.
