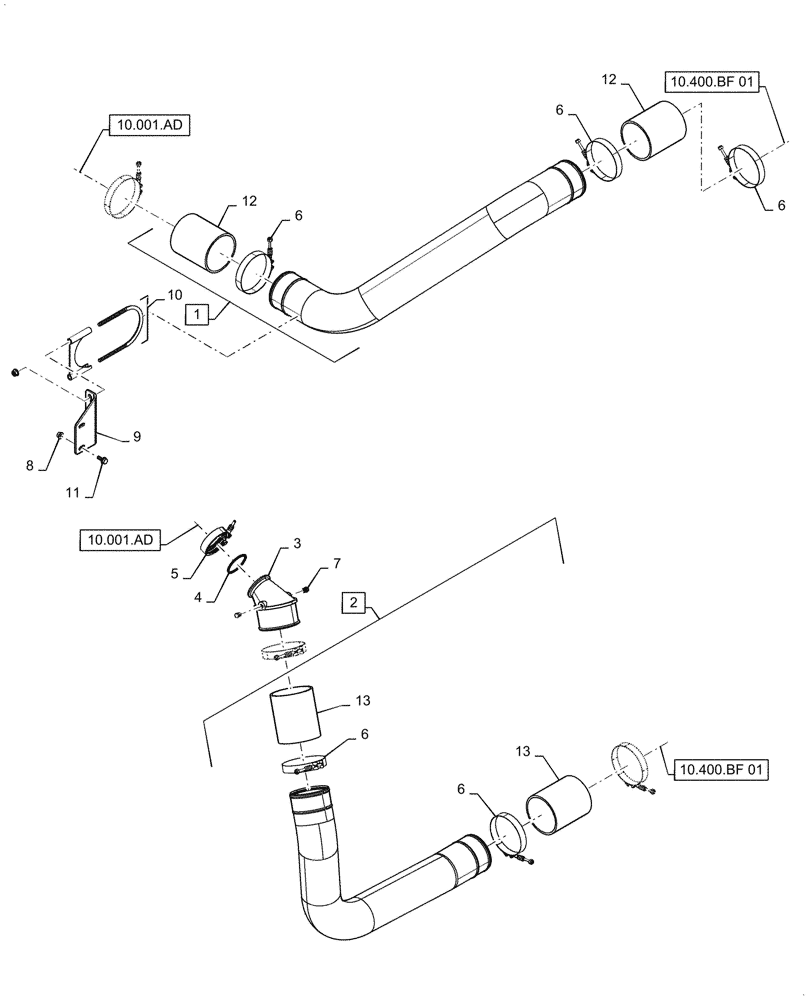

Запчасти Case IH 7088 (10.250.AJ) - CAC HOSE (10) - ENGINE

1

87385310

AIR INTAKE TUBE

CAC Cold Side, Incl 6, 12

1шт.

2

87726608

TUBE

CAC Hot Side, Incl 6, 13

1шт.

3

87301923

ELBOW

Air Transfer Pipe

1шт.

4

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

5

J069053

CLAMP,66.54mm ID

Turbo Outlet V-Band

1шт.

6

87420676

HOSE CLAMP,108mm - 115.8mm

T-Bolt Band Clamp, Spring Loaded

8шт.

7

217-84

PLUG,Hex Hd, 1/8"-27, Brass

2шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

9

84147605

BRACKET

CAC Tube Support

1шт.

10

A162896

CLAMP

Muffler

1шт.

11

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

12

87402762

HOSE

Radiator, Cold Side

2шт.

13

87402761

HOSE

Heater, Hot Side

2шт.
