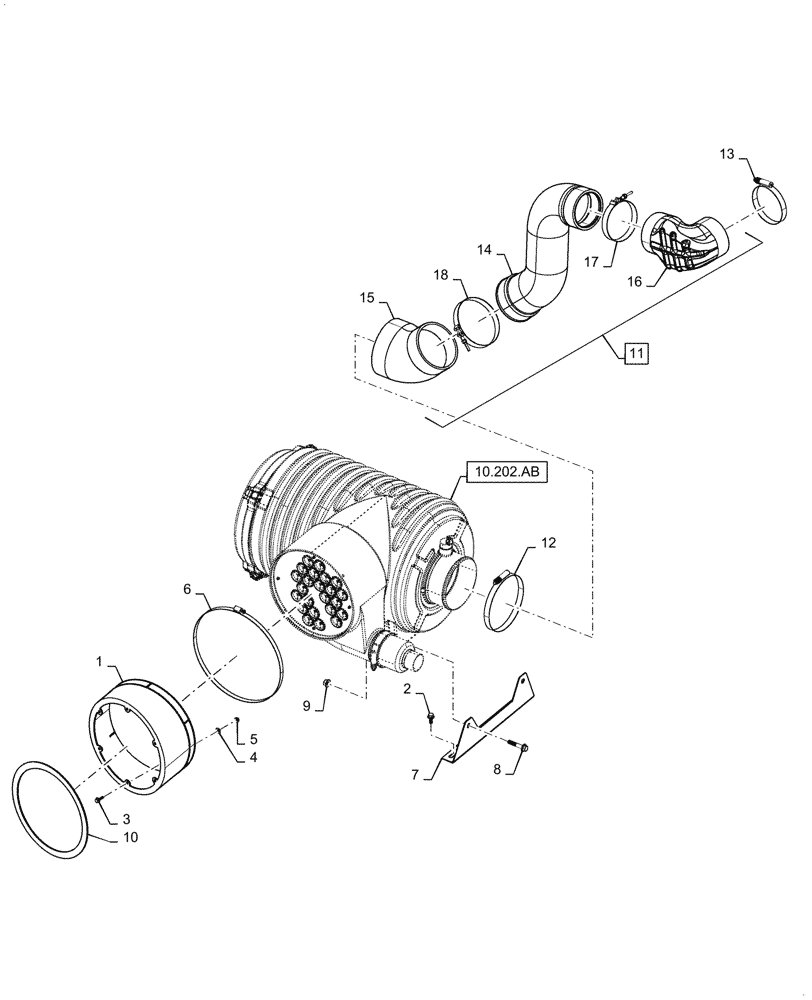

Запчасти Case IH 7088 (10.202.BD) - ENGINE AIR INTAKE (10) - ENGINE

1

451775A1

DUCT

Engine Air

1шт.

2

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

3

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

6шт.

4

495-11028

WASHER,1/4", SAE

6шт.

5

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

6шт.

6

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

7

87414123

SUPPORT

Air Cleaner Canister

2шт.

8

857-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

4шт.

9

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

4шт.

10

87302039

SEAL,856mm L

Inlet Duct

1шт.

11

84268098

AIR INTAKE TUBE

Engine, Incl 14 - 18

1шт.

12

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

1шт.

13

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

1шт.

14

87302182

AIR INTAKE TUBE

Inlet

1шт.

15

87341246

INTAKE AIR HOSE,127.00 mm ID, 152.40 mm ID x 163.45

1шт.

16

84268095

AIR INTAKE TUBE,101.6mm ID x 229.3mm L

Engine Side

1шт.

17

87735195

CLAMP

T-Bolt

1шт.

18

87735196

BOLT

Hose Clamp

1шт.
