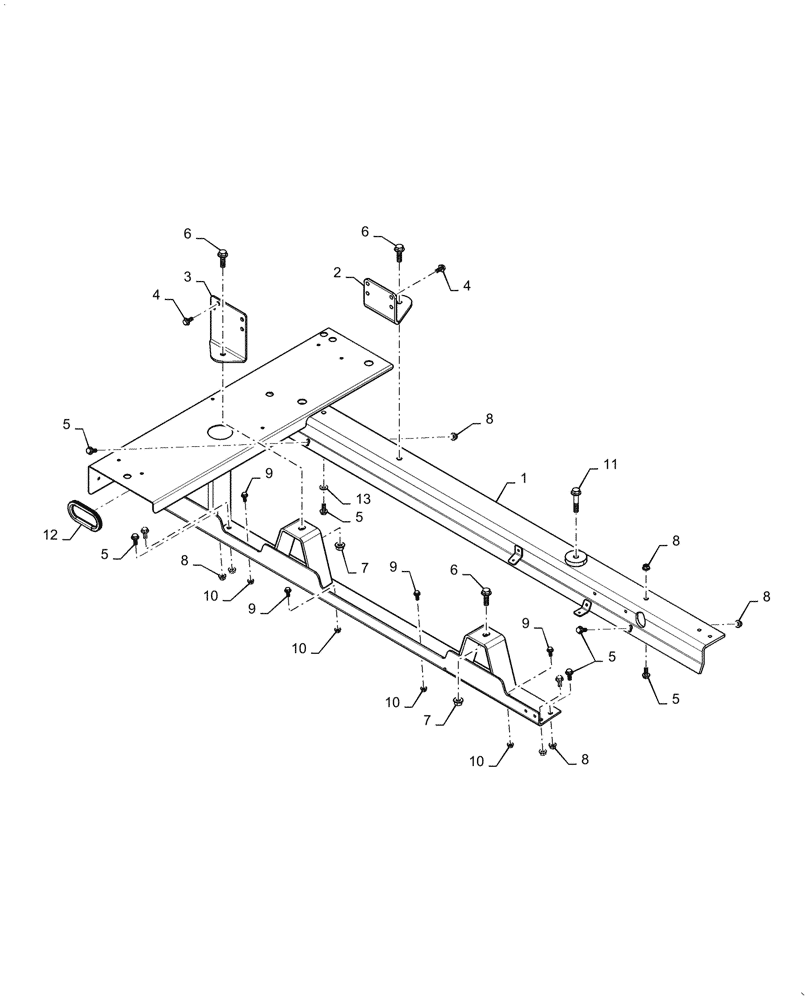

Запчасти Case IH 7088 (10.001.AK) - ENGINE MOUNT (10) - ENGINE

1

84308799

FRAME

Engine Mount

1шт.

2

87675920

SHEET ASSY.

Engine Front Support, RH

1шт.

3

87387631

BRACKET

Engine Front Support, LH

1шт.

4

857-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

8шт.

5

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

8шт.

6

857-16050

BOLT,Hvy Hex, M16 x 50mm, Cl 10.9

3шт.

7

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

8

86512497

FLANGE NUT,M12 x 1.75, Cl 10

7шт.

9

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

4шт.

10

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

11

87646188

FLANGE BOLT,M16 x 95.4mm, Cl 10.9

1шт.

12

237682A1

PROTECTION STRIP

Edge Trim

1шт.

13

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

1шт.
