Запчасти Case IH 7088 (90.150.AD) - CAB EXTERNAL TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

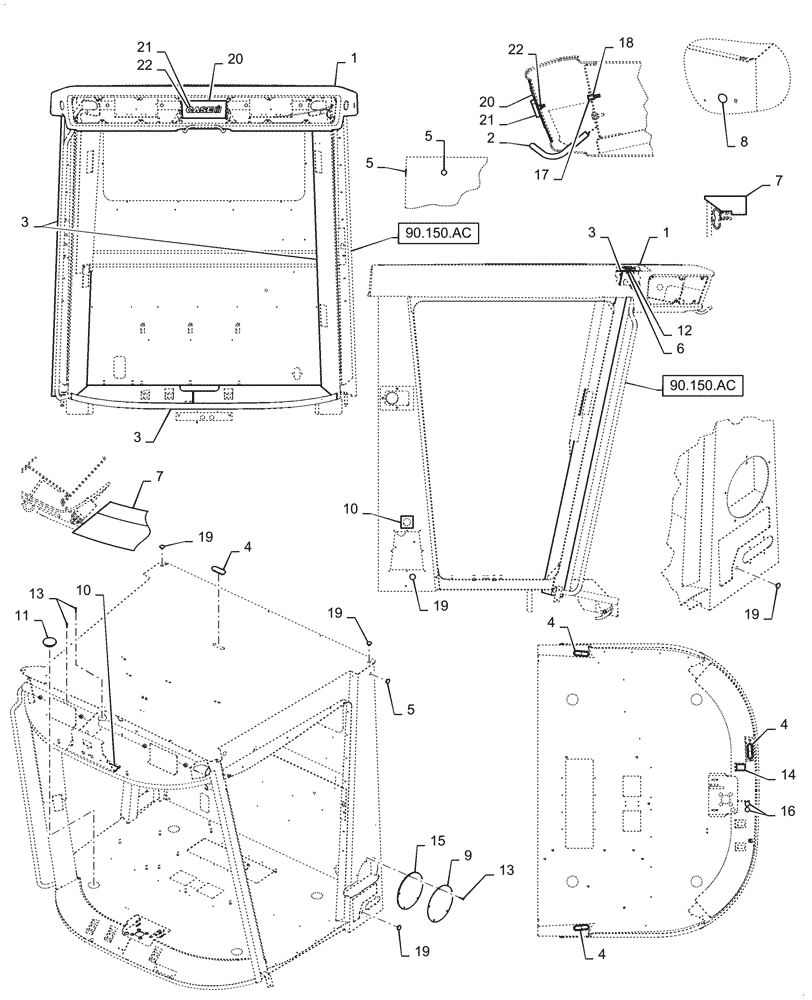

Схема запчастей Case IH 7088 - (90.150.AD) - CAB EXTERNAL TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac
9
6
18
3
5
19
4
4
21
3
7
12
1
11
13
2
19
14
19
19
1
22
20
10
15
13
3
19
21
16
7
17
8
5
22
4
5
4
20
10
90.150.ac

Артикул

Название

Примечание

Количество

1

122819A2

ROOF

Cab

1шт.

2

141758A3

COVER

Emblem

1шт.

3

87387863

CAB

Weldment

1шт.

4

137293A1

PLUG

Hole

4шт.

5

353-404

PLUG,Dome, .500" hole, Nylon

2шт.

6

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

7

232801A1

DOOR SEAL

Cab

2шт.

8

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

9

246753A1

PLATE

Access Hole Cover

1шт.

10

224636A1

DECAL

Connector Cover

1шт.

11

353-593

PLUG

Recessed Button

4шт.

12

495-81001

WASHER,5/16"

2шт.

13

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

7шт.

14

87379592

DECAL

Floor Plate

1шт.

15

252676A1

GASKET,5mm Thk

Access Hole Cover

1шт.

16

353-400

PLUG,Dome, .250" hole, Nylon

2шт.

17

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

18

425-104

NUT,1/4"-20, Cl 5

3шт.

19

353-402

PLUG,Dome, .375" hole, Nylon

8шт.

20

232846A2

COVER

Roof Seam

1шт.

21

87716230

EMBLEM

Case IH Logo

1шт.

22

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

Выбрано товаров: 22
