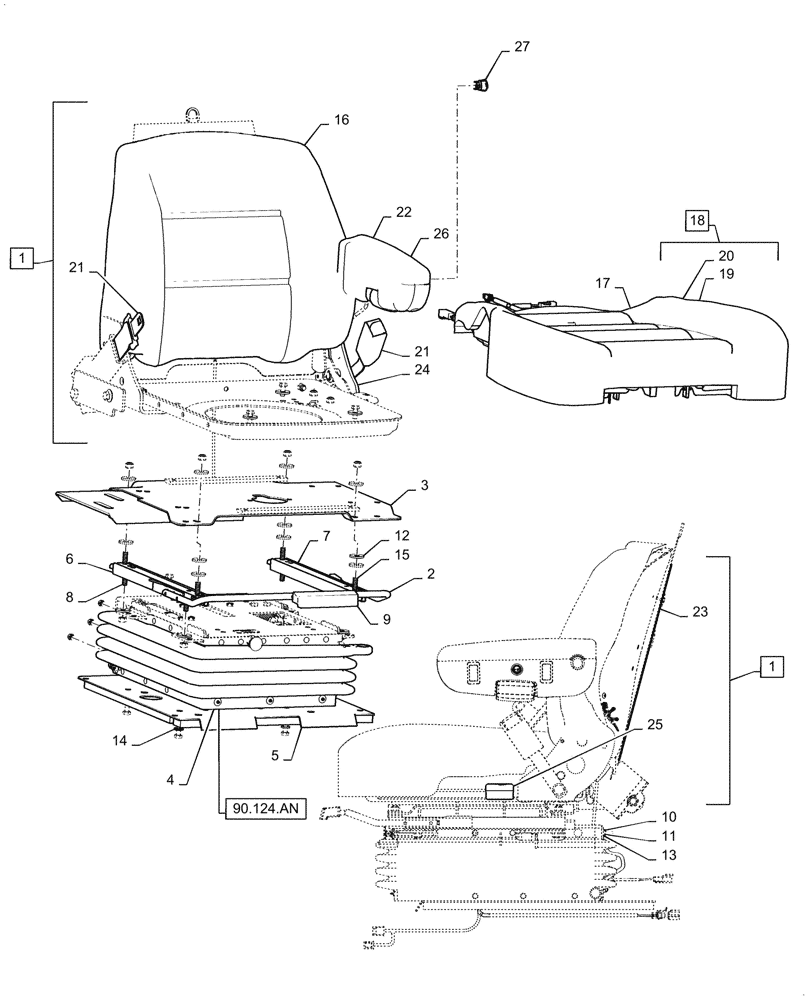

Запчасти Case IH 7088 (90.124.AH[02]) - VAR - 425187 - SEAT CUSHION & ARMREST, CLOTH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84151264

SEAT ACCESSORY

Top, Incl 16 - 26

1шт.

2

86994163

SERVICE KIT

Slide Bar

1шт.

3

87413045

PLATE

Upper Mount

1шт.

4

1990647C2

KIT

Suspension Boot

1шт.

5

87413043

PLATE

Lower Mount

1шт.

6

86990112

SEAT ACCESSORY

Locking Slide

1шт.

7

86990111

SEAT ACCESSORY

Locking Slide

1шт.

8

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

9

180587A1

HANDLE

Fore/Aft Slide Knob

1шт.

10

9602225

LOCK WASHER,#12

1шт.

11

263-10610

SELF-TAP SCREW,Slotted Pan Hd, #12 x 5/8"

1шт.

12

1974732C1

WASHER

Flat

4шт.

13

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

1шт.

14

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

4шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

16

84120474

CUSHION

Seat Back

1шт.

17

84129538

SEAT CUSHION

Cloth, Wheat

1шт.

Also Used For Buddy Seat

1шт.

18

84120473

SEAT CUSHION

Assy, Incl 19, 20

1шт.

19

87568463

WIRE HARNESS

Seat

1шт.

20

86400227

SWITCH,Two Connectors, 90° Terminals

Push Button

1шт.

21

87416490

KIT

Seat Belt

1шт.

22

84120494

ARMREST

LH

1шт.

23

86994172

SERVICE KIT

Manual Holder

1шт.

24

86994165

SEAT ACCESSORY

Recliner

1шт.

25

87416475

KNOB

Recliner

1шт.

26

375200A1

PLUG

Switch Cover

1шт.

27

84151297

PLUG

Dome

1шт.
