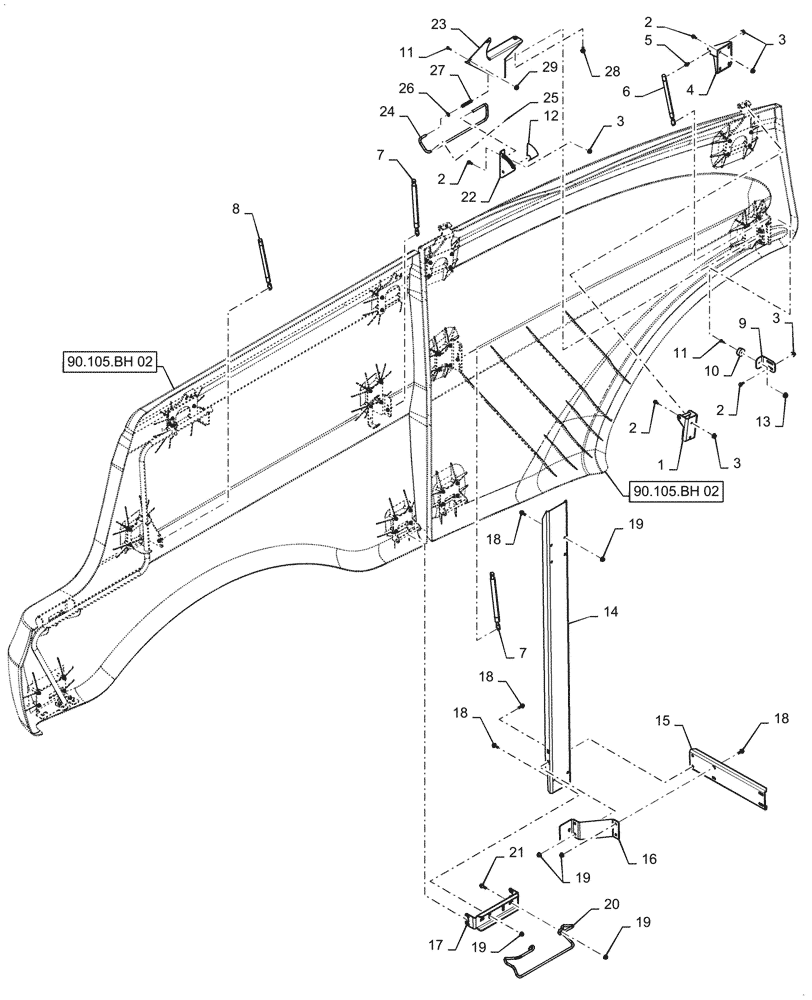

Запчасти Case IH 7088 (90.105.BH[01]) - BODY SIDE PANEL, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87663840

BRACKET

Hinge, Front LH

1шт.

2

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

10шт.

3

86507066

FLANGE NUT,M8 x 1.25, Cl 10

11шт.

4

87663897

BRACKET

Gas Spring Mount, Front Panel

1шт.

5

86634307

STUD

Ball

1шт.

6

87688426

GAS STRUT

250N

1шт.

7

87757843

GAS STRUT

700N

2шт.

8

87690981

GAS STRUT

500N

1шт.

9

87671843

BRACKET

Bumper

1шт.

10

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

1шт.

11

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

3шт.

12

87479419

DECAL

Trim Panel Lock, LH

1шт.

13

86619800

FLANGE NUT,M6 x 1, Cl 8

1шт.

14

87757247

SHEET ASSY.

Post, Side, Rear

1шт.

15

87757210

SHEET ASSY.

Post, Side Rear

1шт.

16

87757249

SUPPORT

Channel

1шт.

17

84136668

BRACKET

Trim Panels Latch

1шт.

18

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

14шт.

19

86050279

FLANGE NUT,M10 x 1.5, Cl 10

16шт.

20

84149018

LATCH

Guard Rod

1шт.

21

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

22

87700648

BRACKET

Latch

1шт.

23

84126909

BRACKET

Front Transport Lock Support

1шт.

24

87470712

ROD

Transport Lock Latch

1шт.

25

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

27

192216A1

SPRING

Safety Stand Rod

1шт.

28

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

1шт.

29

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.
