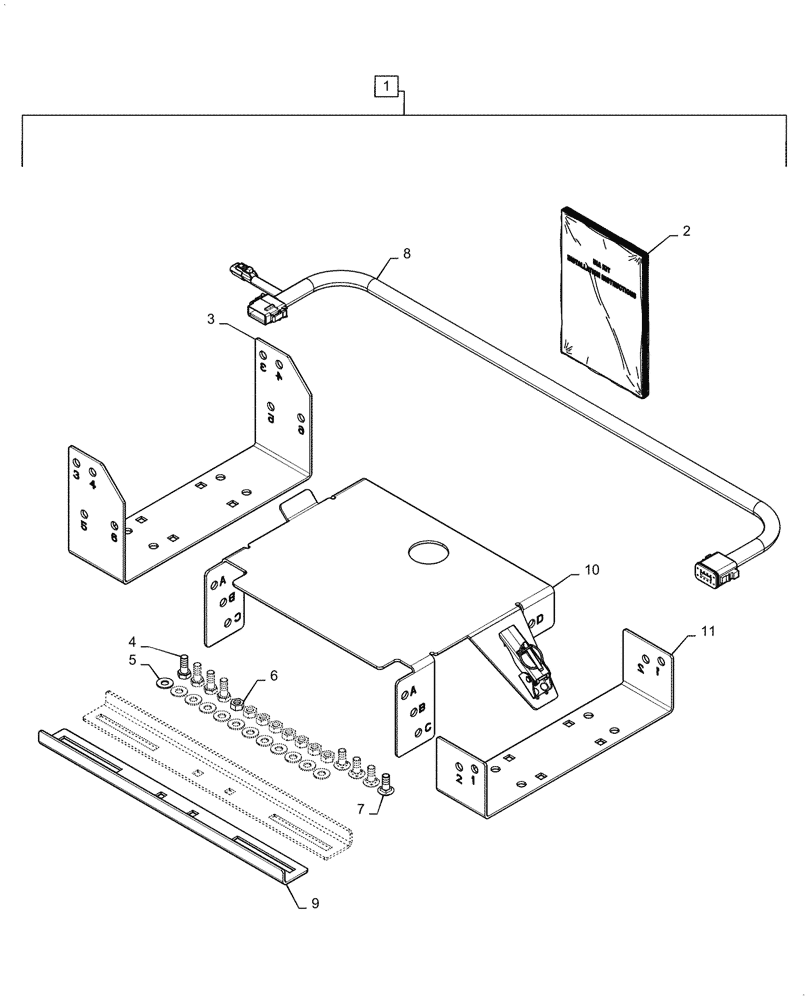

Запчасти Case IH 7088 (88.100.55[10]) - DIA KIT, GPS RECEIVER (88) - ACCESSORIES

1

87726620

DIA KIT, HARVESTER

GPS Install, Incl 2 - 11

1шт.

2

87756334

INSTRUCTION

Sheet

1шт.

3

87335677

BRACKET

LH

1шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

6

9706690

NUT,M8 x 1.25, Cl 8

8шт.

7

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

8

87550514

WIRE HARNESS

AFS252 to Combine

1шт.

9

87623906

BRACKET

GPS Extension

2шт.

10

87488331

BRACKET

252 Receiver Mount

1шт.

11

87335635

BRACKET

Sheet

1шт.
