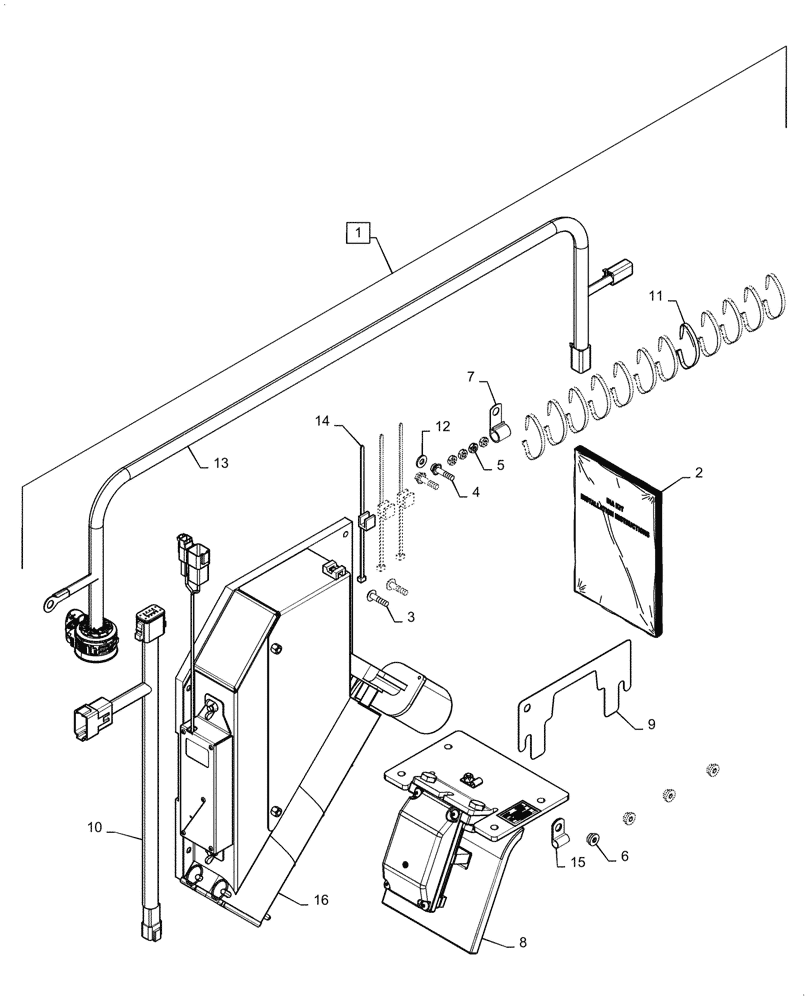

Запчасти Case IH 7088 (88.100.55[08]) - DIA KIT, YIELD MONITOR SENSOR (88) - ACCESSORIES

1

47424711

SERVICE KIT

Yield Sensor DIA, Incl 2 - 16

1шт.

2

47424814

OPERATOR MANUAL

Instruction Sheet

1шт.

3

368798A1

SCREW,Truss HD, 1/4" - 20 x 1", Gr 8

2шт.

4

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

5

425-144

JAM NUT,Jam, 1/4"-20, G5

4шт.

6

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

7

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

8

87387778

SENSOR

Can Flow

1шт.

9

87612334

RUBBER SEAL

Flow Sensor

1шт.

10

87728918

WIRE HARNESS

Can Flow Sensor W/ Shield

1шт.

11

473321C1

CABLE TIE,8" OAL x 0.098" W

12шт.

12

495-11028

WASHER,1/4", SAE

1шт.

13

87389750

WIRE HARNESS

Precision Farming Chassis

1шт.

14

87694057

CABLE TIE,200mm L

3шт.

15

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

16

84295601

SENSOR

Midrange Moisture Bypass

1шт.
