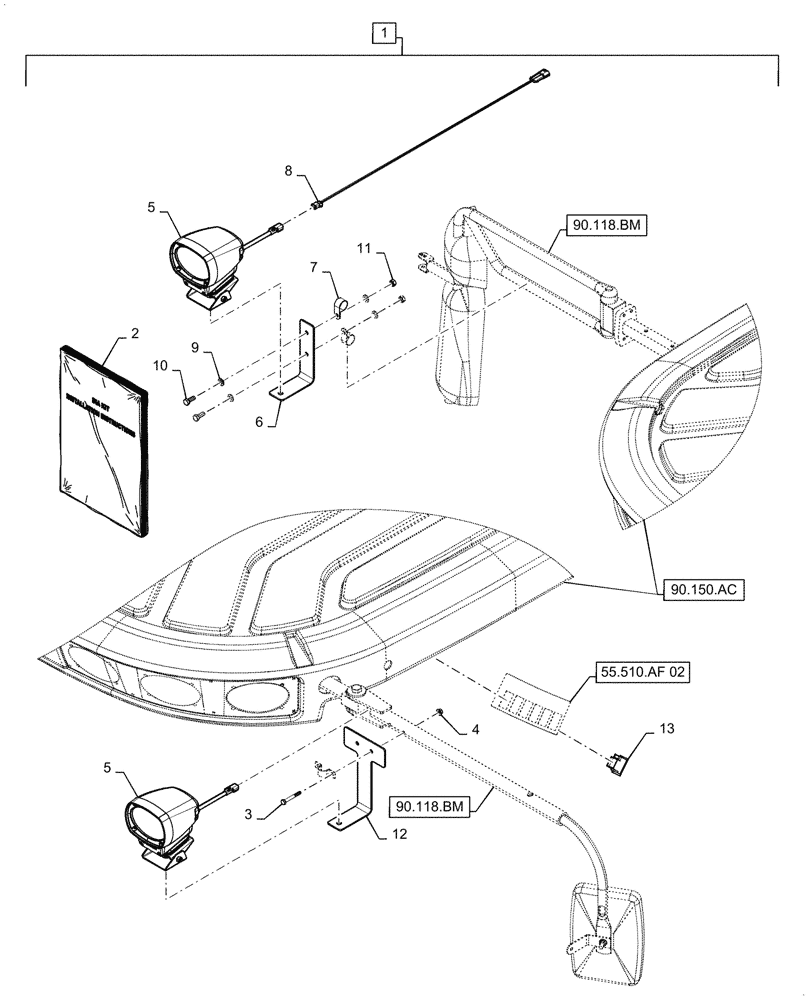

Запчасти Case IH 7088 (88.100.55[04]) - DIA KIT, HID DISTANCE LIGHT (88) - ACCESSORIES

1

87726717

DIA KIT, HARVESTER

HID Distance Light, Incl 2 - 13

1шт.

2

87756643

INSTRUCTION

Sheet

1шт.

3

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

4

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

5

87746238

LIGHT ASSY.

HID Distance

1шт.

6

87756315

BRACKET

Light

1шт.

7

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

8

87497442

WIRE HARNESS

HID Adapter

1шт.

9

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

10

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

11

86500689

NUT,M10 x 1.5, Cl 10

2шт.

12

87756382

BRACKET

Light

1шт.

13

124095A1

LIGHT SWITCH

Cab

1шт.
