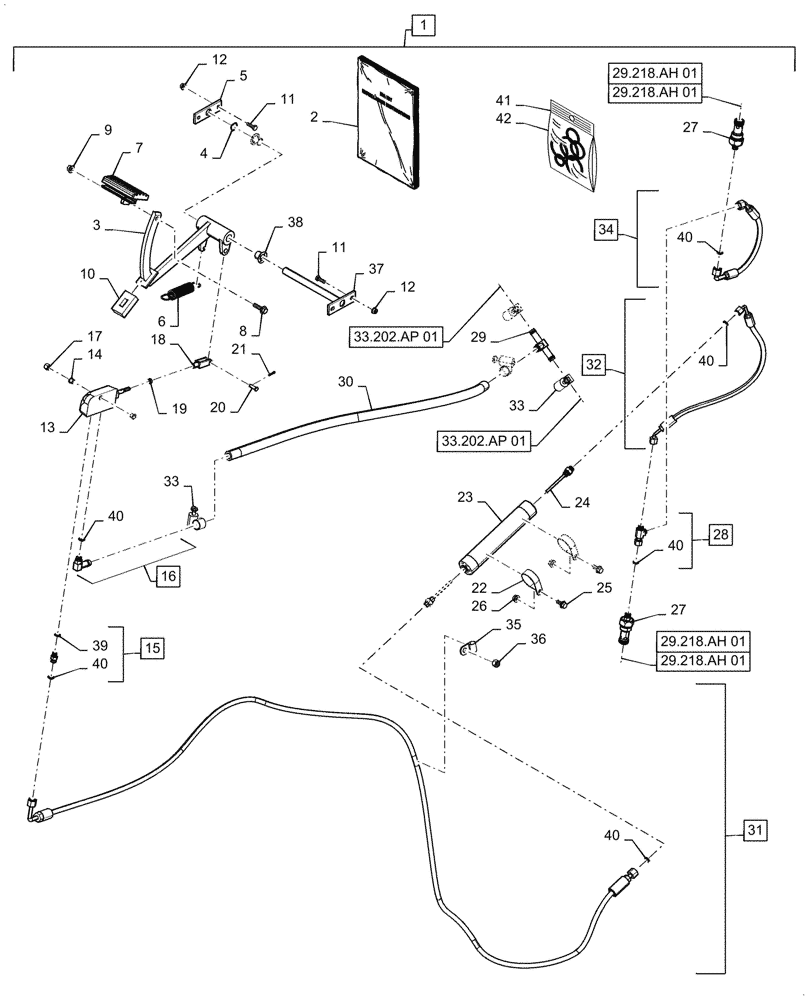

Запчасти Case IH 7088 (88.100.35[02]) - DIA KIT, FOOT - N - INCH (88) - ACCESSORIES

1

84365502

DIA KIT, HARVESTER

Foot - N - Inch, Incl 2 - 42

1шт.

2

84367749

INSTRUCTION

Sheet

1шт.

3

119901A3

PEDAL

Right Brake

1шт.

4

G49413

WASHER

Wave

1шт.

5

1281794C1

PLATE

Pivot Shaft Support

1шт.

6

182652A1

SPRING

Pedal Return

1шт.

7

119902A1

PAD

Pedal

1шт.

8

274254

BOLT,Hex Flg, M10 x 35mm, Stainless

1шт.

9

43435

FLANGE NUT,Hex, M10 x 1.5

1шт.

10

120159A1

FOAM INSULATION

Pedal Seal

1шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

12

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

4шт.

13

84365986

CONTROL VALVE

Foot - N - Inch

1шт.

14

19-6263

NYLON BEARING,0.38" ID x 0.59" OD x 0.38"

2шт.

15

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

Incl 39, 40

1шт.

16

217-342

FITTING,90 Degree Elbow, 5/8" Hose Barb x 9/16" - 18 Male ORB

Incl 40

1шт.

17

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

1шт.

18

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

19

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

20

327-5094

CLEVIS PIN,5/16" x .940"

1шт.

21

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

22

84364044

CLAMP,47.6mm, Coat, P Type

2шт.

23

242967A1

TUBE,31.6 mm ID, 41.3 mm OD, 270 mm Length

1шт.

24

243956A1

FITTING

Attenuator Connector

2шт.

25

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

2шт.

26

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

27

193647A1

VALVE PRESSURE RELIE

Feathering

2шт.

28

83961945

TEE,9/16"-18 ORFS x 9/16"-18 Fem Sw Run

Incl 40

1шт.

29

84367016

TEE

Beaded Tube

1шт.

30

84349400

HOSE

Drain

1шт.

31

141126A2

HOSE,6.35mm ID x 2800mm L

Supply, Incl 40

1шт.

32

84385308

HOSE

Supply to Tube, Incl 40

1шт.

33

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

4шт.

34

141127A3

HOSE,6.35mm ID x 400mm L

Reliefe Valve, Incl 40

1шт.

35

86639005

CLAMP,15.9mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

36

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

1шт.

37

120160A2

SHAFT

Pivot

1шт.

38

185062R1

BUSHING

Nyliner

2шт.

39

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

40

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

8шт.

41

393885R92

SEAL KIT

Relief Valve

1шт.

42

222167A1

REPAIR KIT

Relief Valve

1шт.
