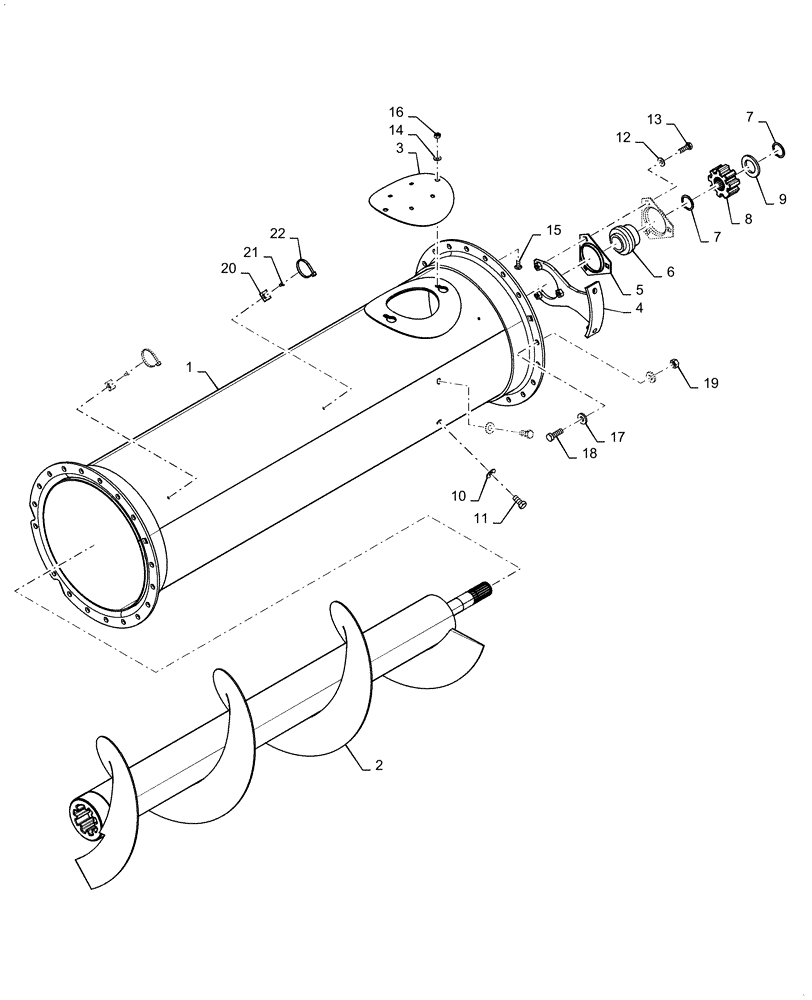

Запчасти Case IH 7088 (80.180.AQ[03]) - VAR - 425078, 722983 - UNLOADING TUBE EXTENSION, 1.3M/4.4FT (80) - CROP STORAGE/UNLOADING

1

84240125

UNLOADING TUBE

1.3M/4.4FT

1шт.

2

84240121

AUGER

Extended Wear

1шт.

3

84355177

COVER

Auger

1шт.

4

84072623

SUPPORT

Bracket

1шт.

5

84414985

FLANGED BEARING

Auger

2шт.

6

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

1шт.

7

370004

SNAP RING,M35 x 1.5mm Thk, External

2шт.

8

87011705

HUB,21T

1шт.

9

84072793

WASHER,35.5mm ID x 58mm OD x 5mm Thk

1шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

11

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

13

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

16

9706690

NUT,M8 x 1.25, Cl 8

2шт.

17

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

38шт.

18

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

19шт.

19

9706685

NUT,M12 x 1.75, Cl 8

19шт.

20

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

3шт.

21

445394

RIVET,Pop, 3/16" x 1/2" OAL

3шт.

22

86566989

CABLE TIE,208mm L

3шт.

23

84256215

AUGER

Unload Tube Assy, 1.3M/4.4FT

1шт.
