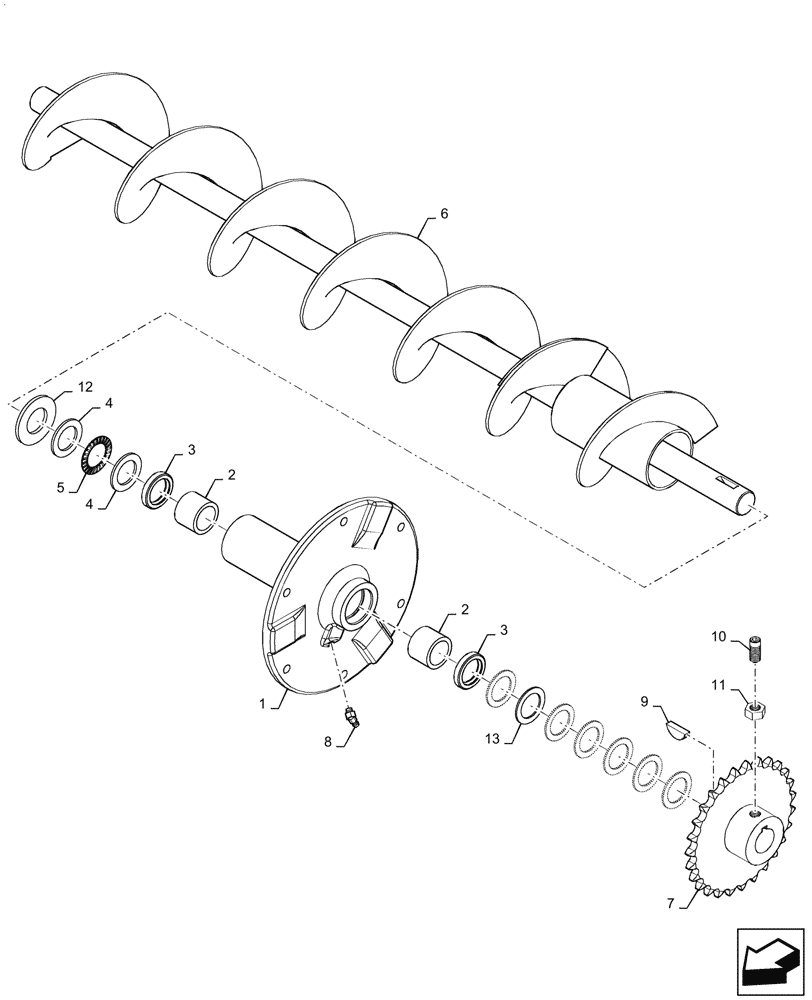

Запчасти Case IH 7088 (74.140.BM[02]) - TAILINGS ELEVATOR UPPER AUGER, BSN Y9G001953 (74) - CLEANING

1

87692304

BEARING HOUSING,36.525 mm ID x 177.8 mm OD x 160 mm

Tailings Delivery Auger Bearing

1шт.

2

574940R91

NEEDLE BEARING,Needle, 25.39mm ID x 33.35mm OD x 25.4mm W

2шт.

3

564592R91

SEAL,23.5mm ID x 36.6mm OD x 6.5mm Thk

2шт.

4

864982R1

THRUST WASHER,1.012" ID x 1.552" OD x 0.93"

Bearing Race Needle Thrust

2шт.

5

1324864C91

THRUST BEARING

Needle, Thrust

1шт.

6

87379140

AUGER

Tailings Delivery

1шт.

7

87622420

SPROCKET ASSY.

Elevator Drive

1шт.

8

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

9

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

10

300483

SET SCREW,M10 x 25mm

2шт.

11

84807411

THIN NUT,Thin, M10 x 1.5, Cl 04

2шт.

12

495-11106

WASHER,1", SAE

1шт.

13

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

7шт.
