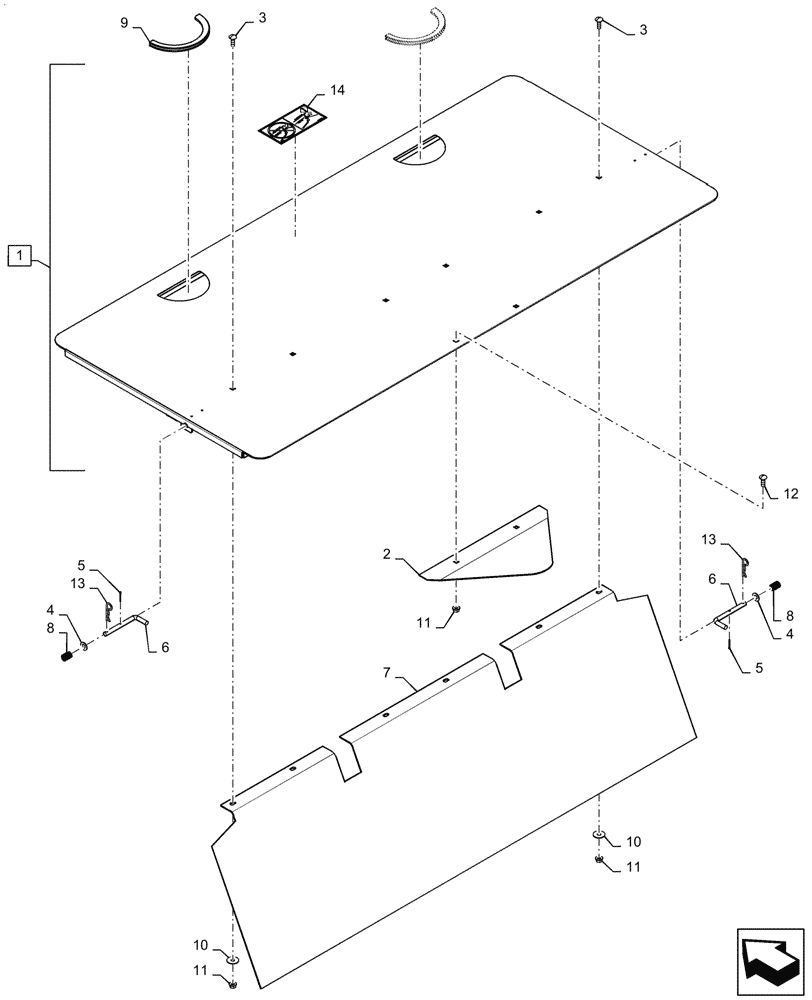

Запчасти Case IH 7088 (73.430.AA[06]) - CHAFF SPREADER SHEET (73) - RESIDUE HANDLING

1

84494385

SHEET

Chaff Spreader, Incl 14

1шт.

2

84150283

DEFLECTOR

Spreader

1шт.

3

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

6шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

5

432-612

COTTER PIN,3/32" x 3/4"

2шт.

6

186736C2

ROD

Tailgate Lock Pin

2шт.

7

87683018

SEAL

Residue Pan

1шт.

8

540815R2

SPRING

Compression Ratchet Hub Pawl

2шт.

9

135370A1

PROTECTION STRIP

Trim

2шт.

10

87013865

WASHER,9mm ID x 28mm OD x 1.6mm Thk

6шт.

11

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

12

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

13

586591R1

COTTER PIN

Quick Attach

2шт.

14

84490998

IMPORTANT DECAL

Pan Installation

1шт.
