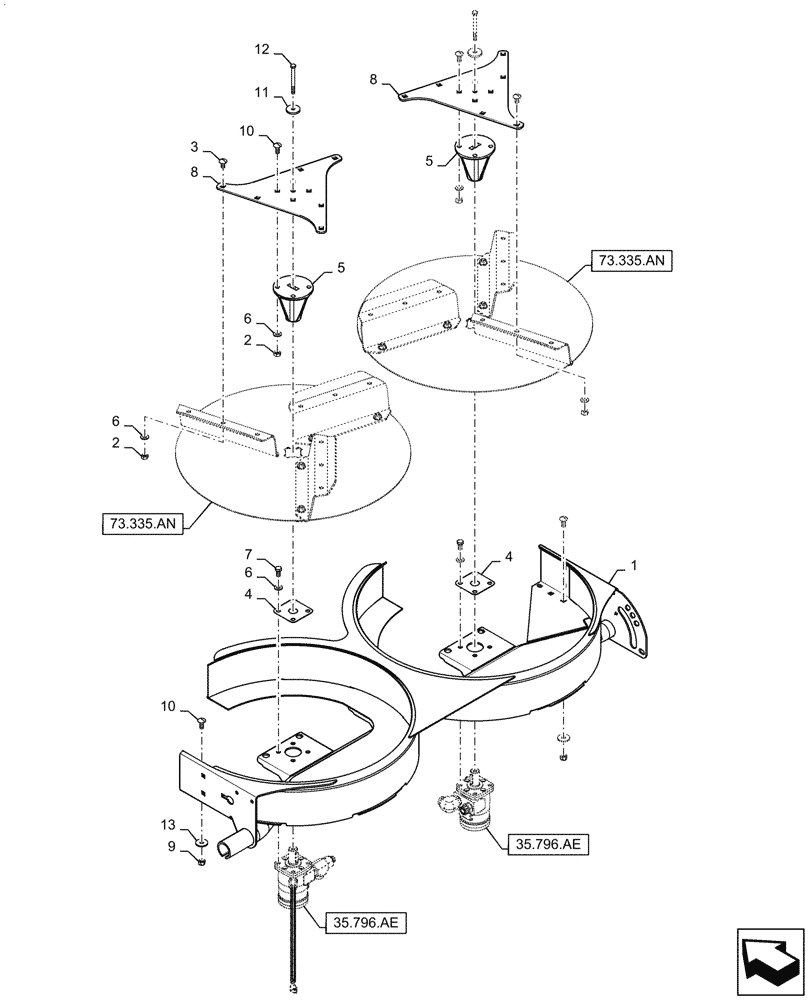

Запчасти Case IH 7088 (73.335.AB[02]) - CHAFF SPREADER BLOWER (73) - RESIDUE HANDLING

1

84130188

FRAME ASSY

Chaff Blower

1шт.

2

100016

NUT,M10 x 1.5, Cl 8

20шт.

3

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

12шт.

4

87531172

PLATE

Cover

2шт.

5

87314540

HUB

Spreader

2шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

28шт.

7

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

8

87709565

PLATE ASSY.

Hub

2шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

10

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

12шт.

11

264198

WASHER,9.9mm ID x 39.1mm OD x 4.8mm Thk

2шт.

12

87302583

LOCK BOLT,M8 x 1.25 x 95.45mm, Cl 10.9

2шт.

13

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

4шт.
