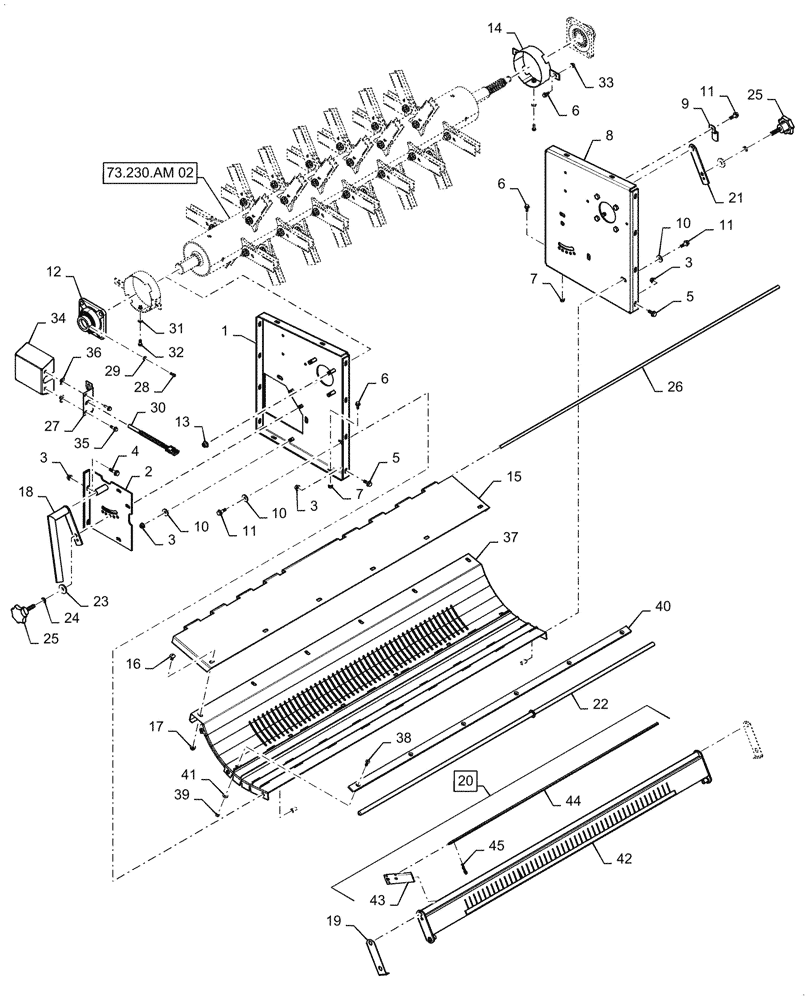

Запчасти Case IH 7088 (73.230.AJ[02]) - STRAW CHOPPER BODY, 6 ROW FLAIL (73) - RESIDUE HANDLING

1

87589802

SUPPORT ASSY.

Plate, LH

1шт.

2

87585119

PLATE ASSY.

Access Cover

1шт.

3

86050279

FLANGE NUT,M10 x 1.5, Cl 10

23шт.

4

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

2шт.

5

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

18шт.

6

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

8шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

8

87589800

SUPPORT ASSY.

Plate, RH

1шт.

9

140527A1

LATCH ASSY.

RH

1шт.

10

496-41041

WASHER,13/32" x 1 1/8" x .134"

8шт.

11

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

6шт.

12

47422280

BEARING HOUSING

4 Bolt Flange

2шт.

13

86512497

FLANGE NUT,M12 x 1.75, Cl 10

8шт.

14

87681530

SUPPORT ASSY.

Winding Guard

2шт.

15

1347207C1

DOOR

Chopper Bottom Top Plate

1шт.

16

87573369

SERRATED SCREW,Sl Truss, M10 x 20mm, Cl 10.9

6шт.

17

825-51410

FLANGE NUT,M10, Flg Ser

6шт.

18

140525A1

HANDLE

Flail Chopper

1шт.

19

1322248C2

BLOCK

Support, RH

2шт.

20

140961A1

SUPPORT

Fixed Knife Bar, Incl 42 - 45

1шт.

21

140760A1

LEVER

Stay Bar, Right

1шт.

22

140521A1

ROD

Knife Bar

1шт.

23

495-81162

WASHER,17/32" x 1 1/2" x .179"

2шт.

24

892-11012

LOCK WASHER,M12

2шт.

25

1322232C2

HANDLE

Screw Knob

2шт.

26

182980C1

ROD,11.11mm OD x 1556mm L

Hinge

1шт.

27

47943652

BRACKET

Chopper Sensor

1шт.

28

393598

SET SCREW,M10 x 20mm, Cl 12.9

1шт.

29

100016

NUT,M10 x 1.5, Cl 8

1шт.

30

87650675

SENSOR

RPM, 12mm Hall

1шт.

31

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

32

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

33

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

34

47941817

COVER

Chopper Shaft, LH

1шт.

35

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

36

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

37

87585116

CONCAVE

Chopper Bottom

1шт.

38

906035R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 25mm, Cl 10.9

6шт.

39

86629542

NUT,M8 x 1.25, Cl 8.8

6шт.

40

87585123

STRIPPER

Shread Bar

1шт.

41

86639316

WASHER,8.4mm ID x 20mm OD x 2mm Thk

6шт.

42

140975A1

BAR ASSY.

Fixed Knife Bar

1шт.

43

1322233C2

KNIFE,168.5mm L x 40mm W x 3mm Thk

47шт.

44

1311905C1

ROD

Locking

1шт.

45

1322252C1

HAIR PIN COTTER

Locking

1шт.
