Запчасти Case IH 7088 (66.360.AH[05]) - SEPARATOR CROSS SUPPORT (66) - THRESHING

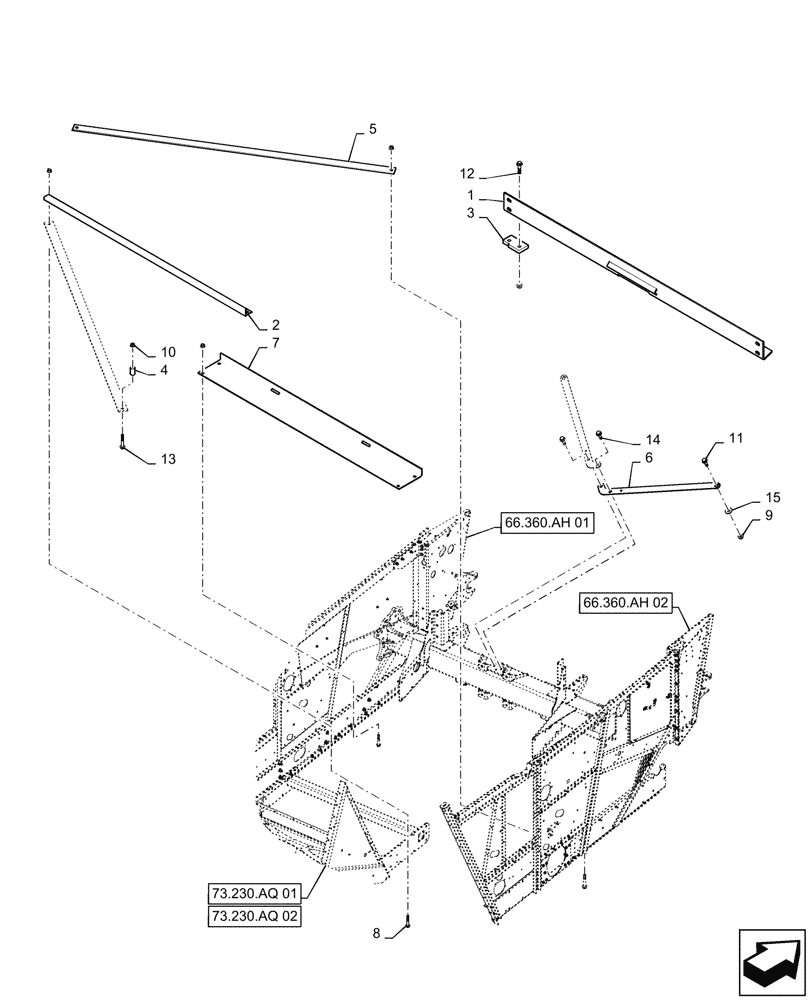

Схема запчастей Case IH 7088 - (66.360.AH[05]) - SEPARATOR CROSS SUPPORT (66) - THRESHING
73.230.aq 01
8
5
4
14
3
9
1
7
10
12
6
13
11
15
2
66.360.ah 01
66.360.ah 02
73.230.aq 02

Артикул

Название

Примечание

Количество

1

87701168

SUPPORT ASSY.

Front Post, Dark Grey

1шт.

2

87701106

ANGLE

Main Sill Center, Dark Grey

1шт.

3

87649381

SPACER

Angle Support Front Post, Dark Grey

2шт.

4

87580180

TUBE SPACER

Frame Cross Brace, Dark Grey

2шт.

5

87578073

STRAP

Bar Separator, Dark Grey

2шт.

6

87499095

SECURING STRAP

Axle to Feeder Pivot, LH, Dark Grey

2шт.

7

87382748

BRACE

Angle Sill, Dark Grey

1шт.

8

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

9

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

10

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

11

87675533

BOLT,M16 x 75.4mm, Cl 10.9

2шт.

12

87670764

BOLT,M12 x 61.8mm, Cl 10.9

8шт.

13

87698846

BOLT,Hvy Hex Flg, M12 x 80mm, Cl 10.9

2шт.

14

87698849

BOLT,M16 x 50mm, Cl 10.9

2шт.

15

87317689

WASHER,18mm ID x 45mm OD x 4mm Thk

18mm ID x 45mm OD x 4mm Thick

2шт.

Выбрано товаров: 15
