Запчасти Case IH 7088 (66.331.AL[03]) - VAR - 722808, 722885, 722886 - SUPPORT, ROTOR, FRONT, LARGE TUBE (66) - THRESHING

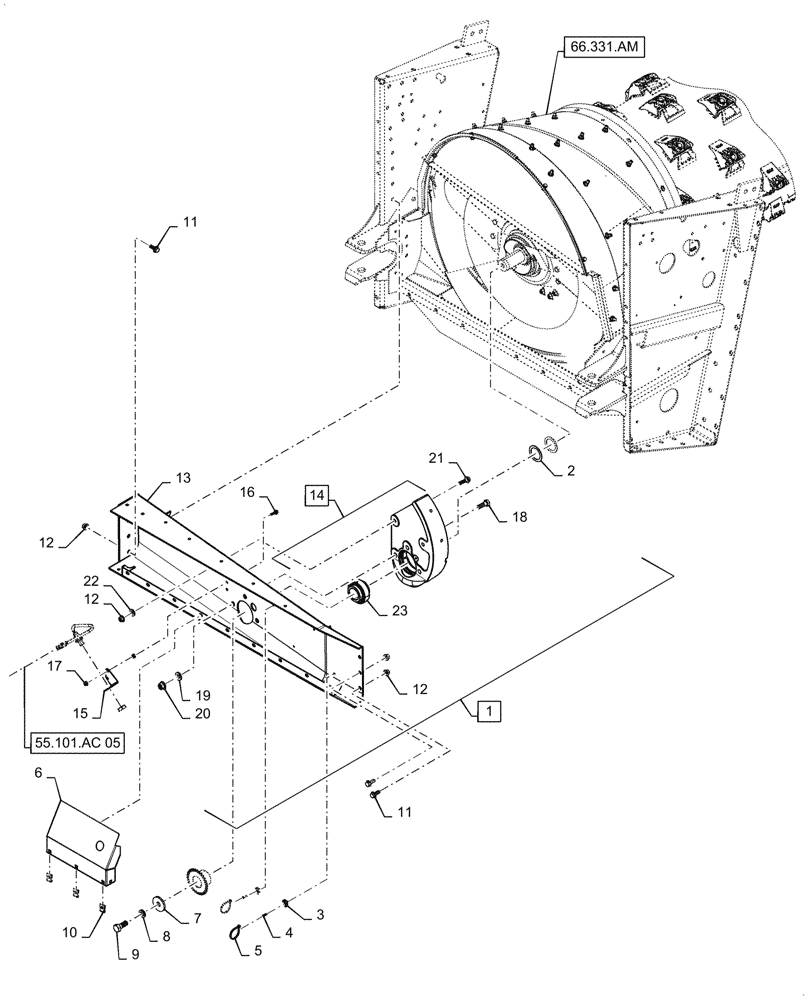

Схема запчастей Case IH 7088 - (66.331.AL[03]) - VAR - 722808, 722885, 722886 - SUPPORT, ROTOR, FRONT, LARGE TUBE (66) - THRESHING
66.331.am
11
22
17
1
12
4
6
15
19
16
11
8
14
20
10
3
18
12
7
9
2
23
13
21
5
12
55.101.ac 05

Артикул

Название

Примечание

Количество

1

47870346

SUPPORT

Rotor Front Channel, Incl 12 - 23

1шт.

2

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

2шт.

3

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

4шт.

4

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

4шт.

5

86566989

CABLE TIE,208mm L

4шт.

6

87681895

BRACKET, SUPPORTING

Shield, Rotor RPM Sensor

1шт.

7

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

Rotor Front Shaft

1шт.

8

492-11075

LOCK WASHER,3/4"

1шт.

9

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

1шт.

10

86625071

SPRING NUT,M10 x 1.5

3шт.

11

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

7шт.

12

86512497

FLANGE NUT,M12 x 1.75, Cl 10

9шт.

13

47836802

SUPPORT

Rotor Front Bearing, Extended Wear

1шт.

14

87680175

BEARING ASSY

Housing, Incl 23

1шт.

15

87681790

BRACKET, SUPPORTING

Speed Sensor

1шт.

16

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

18

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

3шт.

19

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

3шт.

20

86512498

FLANGE NUT,M16 x 2, Cl 10

3шт.

21

86705431

BOLT,Hex, M12 x 40mm, Cl 10.9

2шт.

22

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

23

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

1шт.

Выбрано товаров: 23
