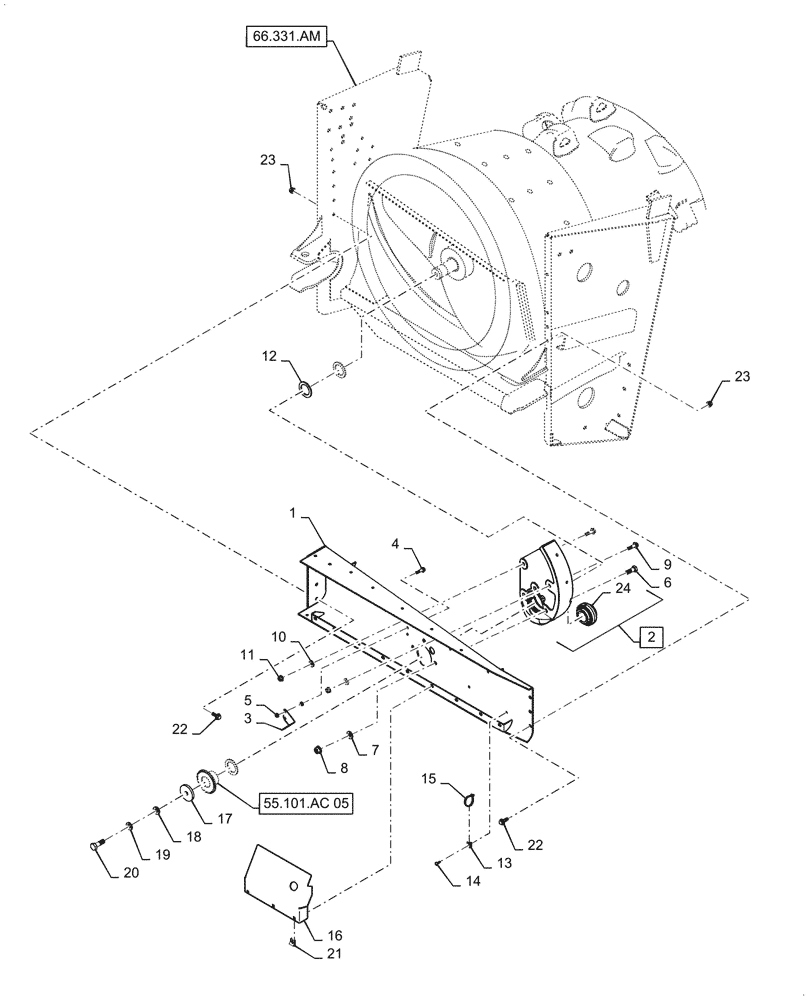

Запчасти Case IH 7088 (66.331.AL[02]) - VAR - 425436 - SUPPORT, ROTOR, FRONT, SMALL TUBE (66) - THRESHING

1

87613390

SUPPORT ASSY.

Rotor, Front

1шт.

2

87680031

THRUST BEARING

Rotor, Front Support, Incl 24

1шт.

3

87648025

SUPPORT

Rotor Speed Sensor Mount

1шт.

4

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

6

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

3шт.

7

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

3шт.

8

86512498

FLANGE NUT,M16 x 2, Cl 10

3шт.

9

86705431

BOLT,Hex, M12 x 40mm, Cl 10.9

2шт.

10

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

11

86512497

FLANGE NUT,M12 x 1.75, Cl 10

11шт.

12

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

1шт.

13

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

4шт.

14

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

4шт.

15

86566989

CABLE TIE,208mm L

4шт.

16

87681895

BRACKET, SUPPORTING

RPM Sensor

1шт.

17

86998693

WASHER,17.8mm ID x 76.2mm OD x 9.5mm Thk

1шт.

18

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

1шт.

19

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

20

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

1шт.

21

833-40310

NUT,M10, U

3шт.

22

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

7шт.

23

86512497

FLANGE NUT,M12 x 1.75, Cl 10

7шт.

24

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

1шт.
