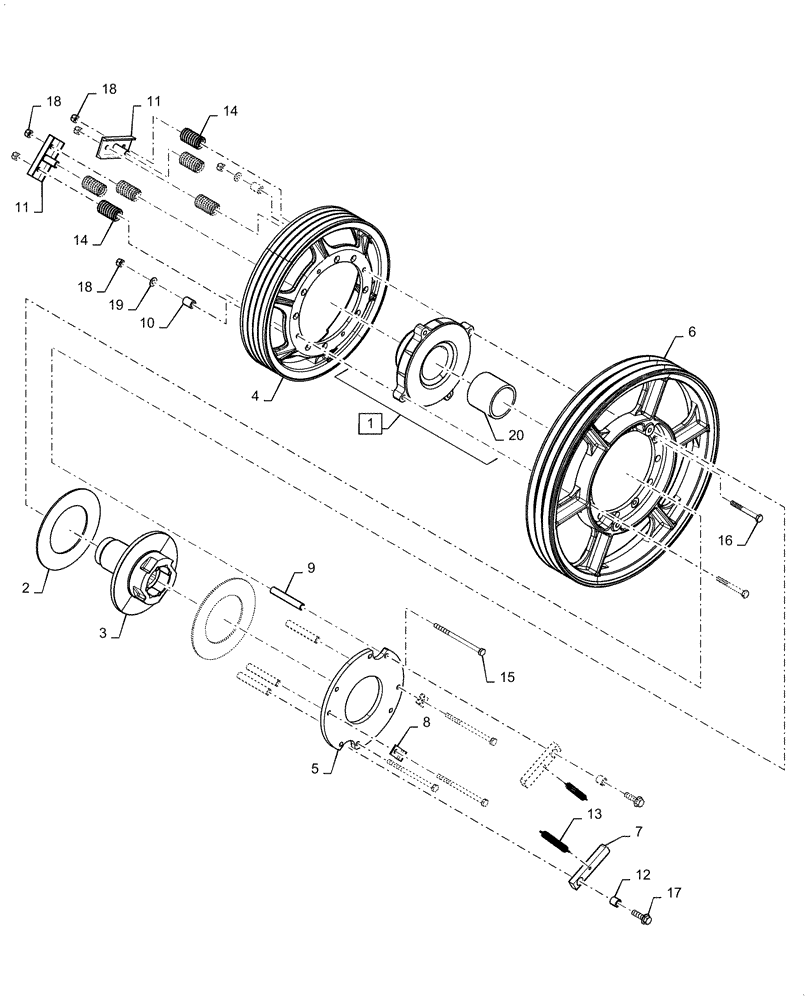

Запчасти Case IH 7088 (60.150.AY[02]) - VAR - 425126, 425125, 425088, 425087, 425086, 425085, 425084 - FEEDER CONVEYOR CLUTCH, STONE TRAP (60) - PRODUCT FEEDING

1

87543658

HOUSING ASSY.

Outer Hub, Incl 20

1шт.

2

84151259

LINING

Friction Clutch

2шт.

3

84124122

HUB

Inner, Clutch

1шт.

4

87665207

PULLEY

Friction Clutch

1шт.

5

87726043

PLATE ASSY.

Outer, Feeder Reverser

1шт.

6

87729260

PULLEY,573mm OD

Outer, Clutch

1шт.

7

87730813

BAR

Ratchet, Feeder Reverser

2шт.

8

86988966

MOUNTING PLATE

Spring

2шт.

9

87386411

SPACER

Friction Clutch

8шт.

10

87374324

SPACER,11.1mm ID x 19.05mm OD x 25mm L

Drive Lug

4шт.

11

1315316C1

SUPPORT

Slip Clutch Spring Retainer

4шт.

12

87752993

DRIVE BUSHING

Reverser Ratchet

2шт.

13

86989592

SPRING

Accelerator

2шт.

14

84146255

SPRING

Feeder Clutch

12шт.

15

87665088

BOLT

M10 x 155mm

8шт.

16

86508620

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

17

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

18

86512554

NUT,M10 x 1.5, Cl 10

12шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

20

87543680

BUSHING

Outer Hub

1шт.
