(60.130.AJ[02]) - FEEDER DRIVER, HEAVY DUTY

Запчасти Case IH 7088 (60.130.AJ[02]) - FEEDER DRIVER, HEAVY DUTY (60) - PRODUCT FEEDING

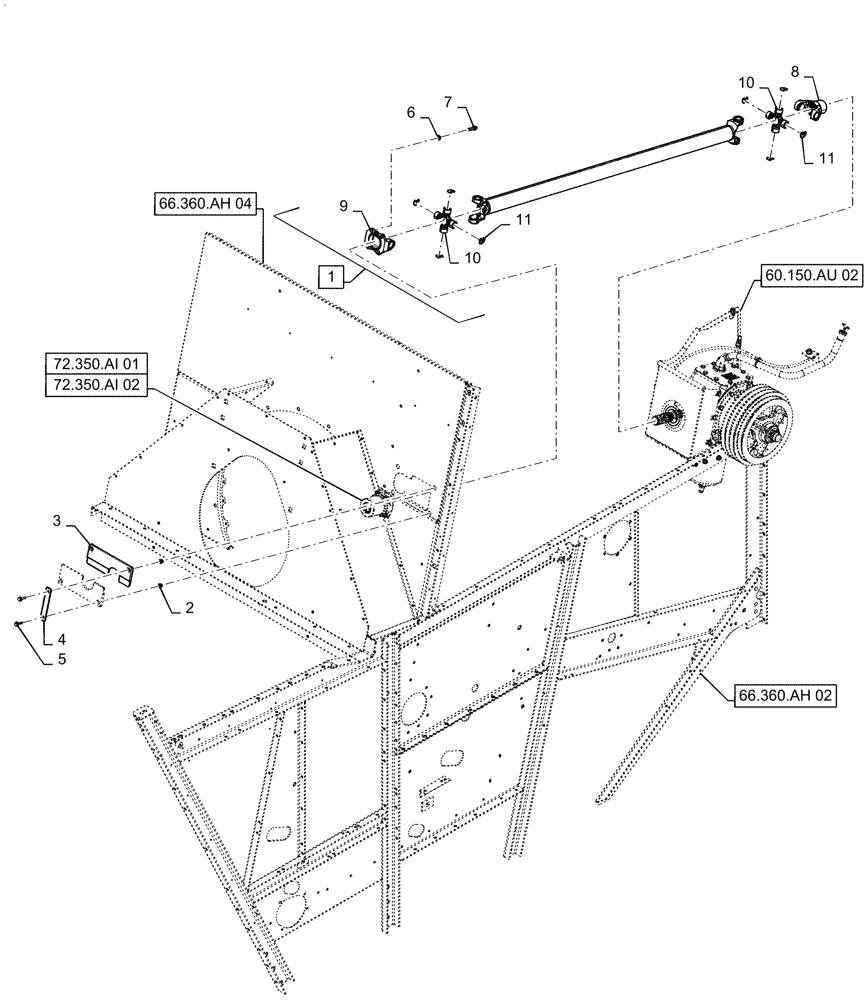

Схема запчастей Case IH 7088 - (60.130.AJ[02]) - FEEDER DRIVER, HEAVY DUTY (60) - PRODUCT FEEDING
60.150.au 02
3
5
4
10
7
9
11
11
6
2
1
8
10
72.350.ai 01
72.350.ai 02
66.360.ah 04
66.360.ah 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87597406

DRIVE SHAFT

Separator Jackshaft, Incl 8 - 11

1шт.

2

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

4шт.

3

87584502

SEAL

Feeder Driveshaft

2шт.

4

87624399

STRAP

Drive Shaft Seal Retainer

2шт.

5

87030775

BOLT,M8 x 38.1mm, Cl 10.9

4шт.

6

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

4шт.

7

87035075

12 PT SCREW,M12 x 35mm, Cl 12.9

4шт.

8

87600699

YOKE

Slip, 16T Spline

1шт.

9

87600700

FLANGE

Yoke

1шт.

10

87597409

BEARING ASSY

Universal Joint

2шт.

11

87600698

SNAP RING

Bearing

8шт.

Выбрано товаров: 11
