(60.120.AI[05]) - FEEDER LATCH

Запчасти Case IH 7088 (60.120.AI[05]) - FEEDER LATCH (60) - PRODUCT FEEDING

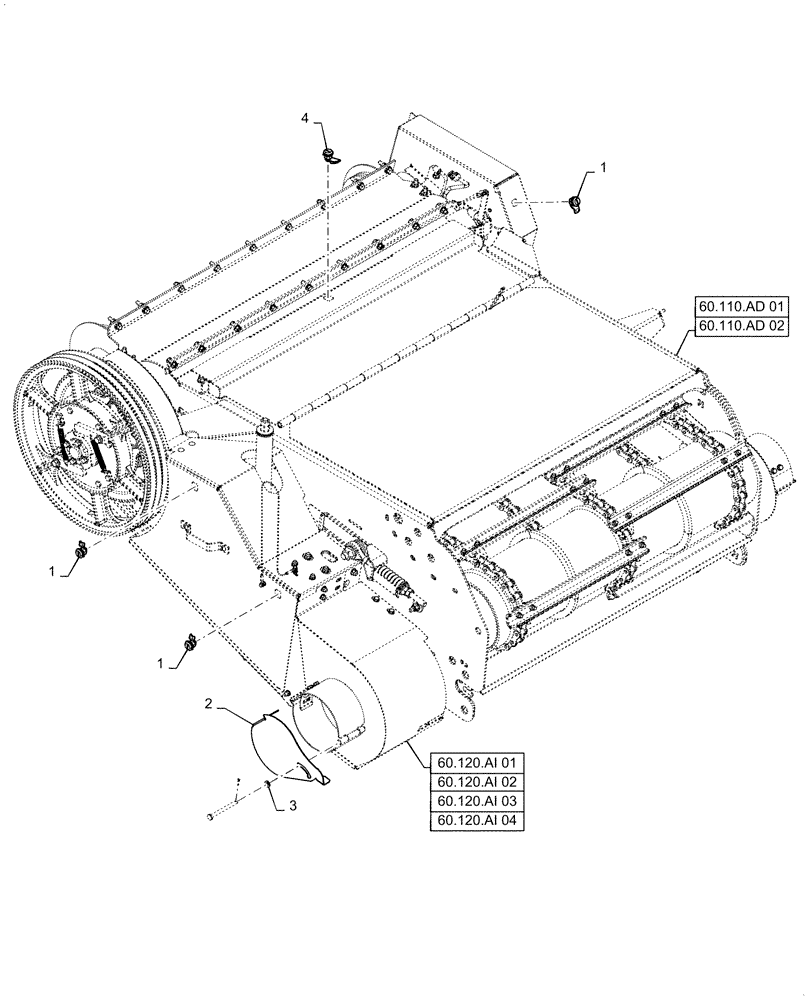

Схема запчастей Case IH 7088 - (60.120.AI[05]) - FEEDER LATCH (60) - PRODUCT FEEDING
60.110.ad 01
1
1
1
4
3
2
60.120.ai 02
60.120.ai 03
60.120.ai 01
60.120.ai 04
60.110.ad 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

135476A1

LOCK

Shield Latch, VAR - 425088

3шт.

1

135476A1

LOCK

Shield Latch, VAR - 425083

2шт.

1

138699A2

LOCK

Shield Latch, VAR - 425126, 425125, 425087, 425086, 425085, 425084

3шт.

1

138699A2

LOCK

Shield Latch, VAR - 425082, 425081, 425080, 425079

2шт.

2

84159143

COVER ASSY

Rear Belt, VAR - 425088, 425083

1шт.

3

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

Cover, VAR - 425088, 425083

1шт.

4

143347A1

LATCH

Shield Latch, VAR - 425088, 425083

1шт.

4

182925A1

LOCK

Shield Latch, VAR - 425126, 425125, 425087, 425086, 425085, 425084, 425082, 425081, 425080, 425079

1шт.

Выбрано товаров: 8
