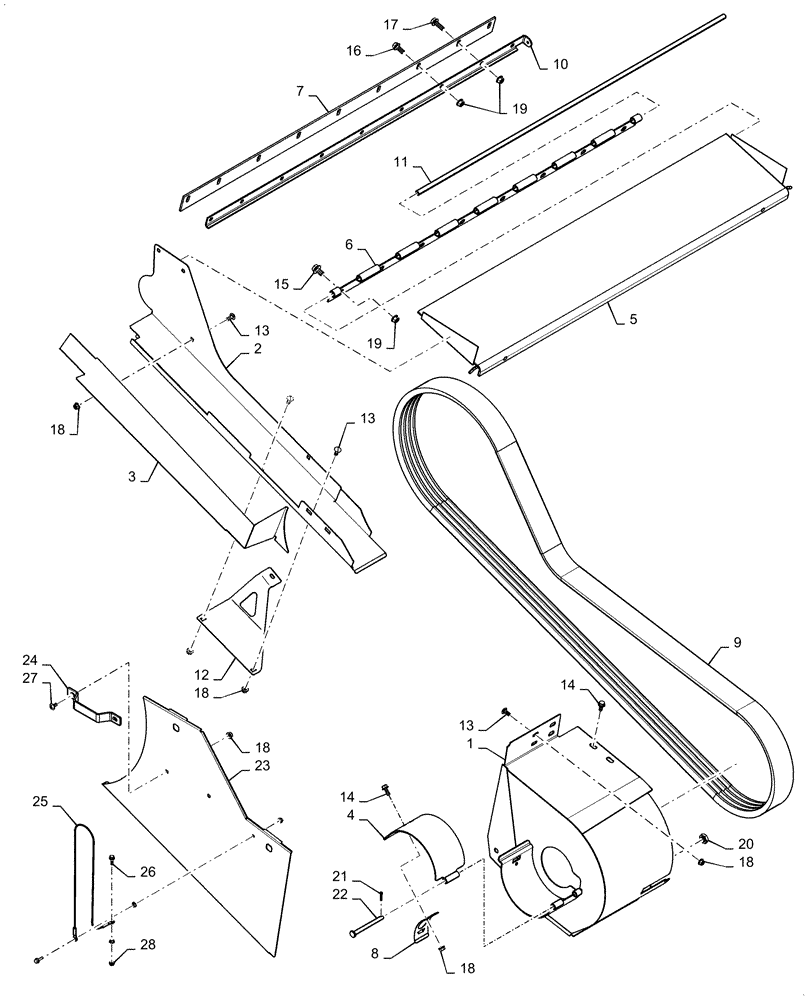

Запчасти Case IH 7088 (60.120.AI[01]) - VAR - 425083, 425081, 425079 - HEADER DRIVE, NON-STONE TRAP (60) - PRODUCT FEEDING

1

84378114

SHIELD

Single Speed, Non-Rock Trap

1шт.

2

84378104

SHIELD

Feeder Drive, 60"

1шт.

3

87720948

COVER ASSY

Belt

1шт.

4

87753756

SHIELD

Jackshaft, RH Upper

1шт.

5

87602131

DOOR

Feeder

1шт.

6

193611C2

HINGE

Feed Plate

1шт.

7

634248R2

SEAL,55mm W x 1175.96mm L

1шт.

8

86638316

LATCH

Jackshaft Shield

1шт.

9

87332161

V-BELT

Header Drive

1шт.

10

87720413

SUPPORT

Feeder Top Seal

1шт.

11

175931C1

ROD

Feed Door

1шт.

12

84154101

BRACKET

Header Drive

1шт.

13

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

10шт.

14

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

15

274249

BOLT,Hex, M10 x 20mm

8шт.

16

905-10025

BOLT,Hex Flg, M10 x 25mm

7шт.

17

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

18

86507066

FLANGE NUT,M8 x 1.25, Cl 10

14шт.

19

43435

FLANGE NUT,Hex, M10 x 1.5

14шт.

20

10717511

THIN NUT,Thin, M16 x 2, Cl 04

1шт.

21

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

22

86605625

CLEVIS PIN,M10 x 110

1шт.

23

87754566

COVER ASSY

Ceeder Drive, 60"

1шт.

24

87686906

LATCH

Door Handle

1шт.

25

132657A2

CABLE

Reverser Shield Tether

1шт.

26

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

27

847-3816

SERRATED SCREW,Sl Truss, M8 x 16mm, Cl 10.9

2шт.

28

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.
