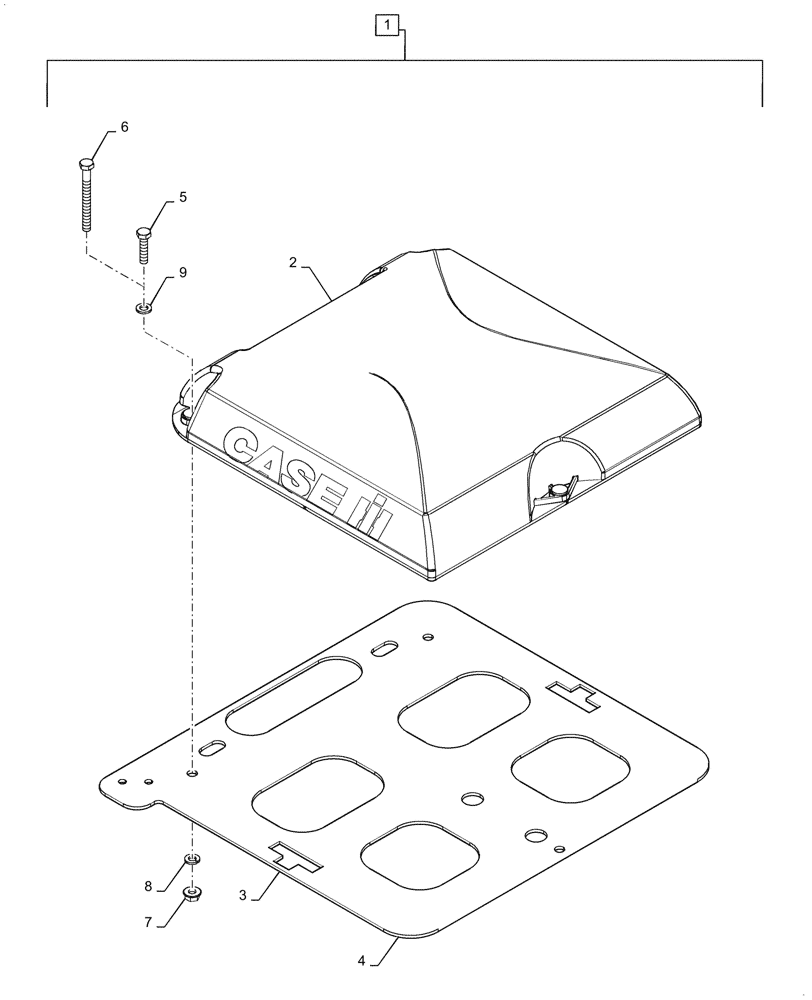

Запчасти Case IH 7088 (55.911.AB[03]) - VAR - 425135 - AFS 252 GPS RECEIVER (55) - ELECTRICAL SYSTEMS

1

87595761

KIT

AFS 252 GPS Receiver, Incl 2 - 9

1шт.

2

84148119

MODULE

AFS 252 Receiver WAAS / EGNOS / VBS

1шт.

3

87491301

MOUNTING PLATE

Receiver, Incl 4 - 9

1шт.

4

47854899

PLATE

Mounting

1шт.

5

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

3шт.

6

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

3шт.

7

86511444

FLANGE NUT,Hex, M6 x 1

3шт.

8

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.
