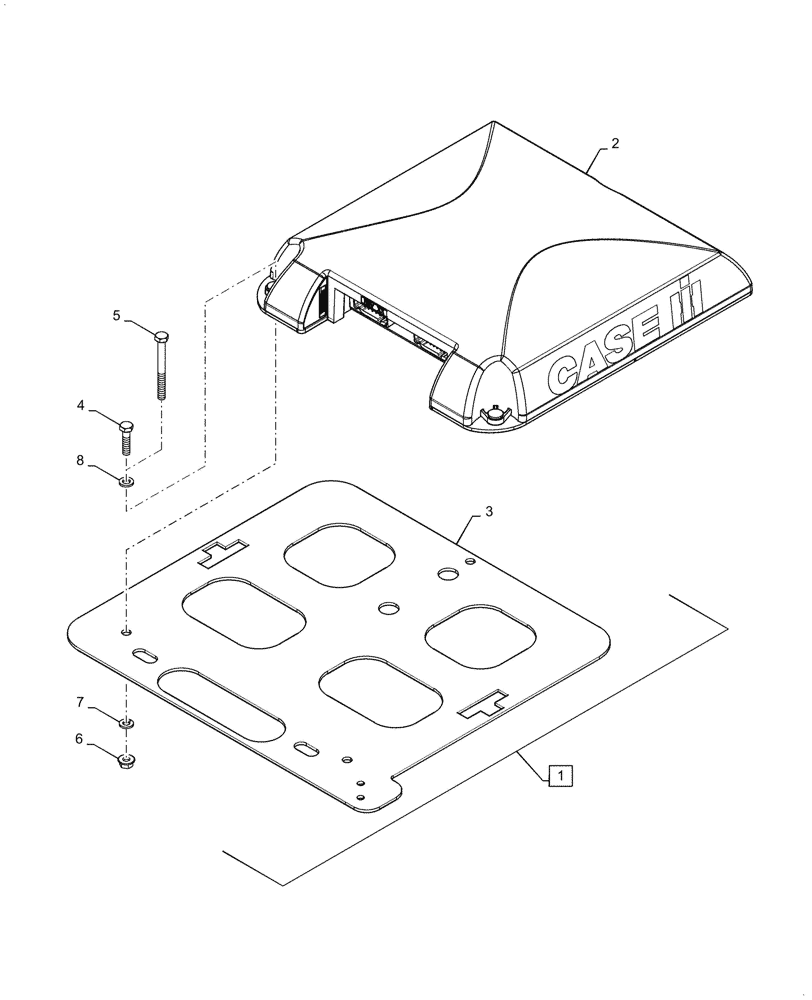

Запчасти Case IH 7088 (55.911.AB[01]) - VAR - 425254 - AFS 262 GPS RECEIVER (55) - ELECTRICAL SYSTEMS

1

87491301

MOUNTING PLATE

Hardware, Incl 3 - 8

1шт.

2

84148115

MODULE

GPS Receiver, AFS 262, WAAS / EGNOS / VBS / HP / XP

1шт.

3

47854899

PLATE

Mounting

1шт.

4

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

3шт.

5

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

3шт.

6

86511444

FLANGE NUT,Hex, M6 x 1

3шт.

7

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.
