Запчасти Case IH 7088 (55.785.AS[03]) - VAR - 425117 - ELEVATOR, NON-YIELD MONITOR ASSY (55) - ELECTRICAL SYSTEMS

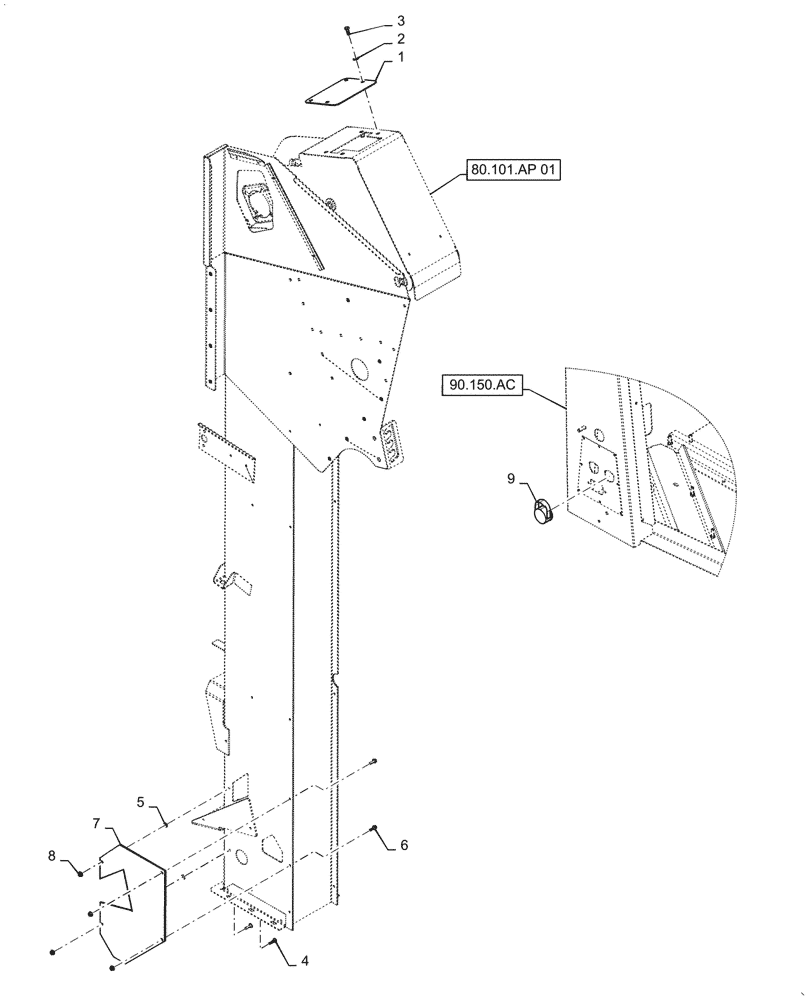

Схема запчастей Case IH 7088 - (55.785.AS[03]) - VAR - 425117 - ELEVATOR, NON-YIELD MONITOR ASSY (55) - ELECTRICAL SYSTEMS
80.101.ap 01
8
2
4
6
3
1
9
5
7
90.150.ac

Артикул

Название

Примечание

Количество

1

87346732

PLATE ASSY.

Elevator Head Cover

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

368798A1

SCREW,Truss HD, 1/4" - 20 x 1", Gr 8

2шт.

5

131-433

PUSH-ON NUT,Push, 1/4"

2шт.

6

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

2шт.

7

87331542

PLATE ASSY.

Elevaotor Cover

1шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

9

87674936

PLUG

Precision Farming Bulkhead

1шт.

Выбрано товаров: 9
