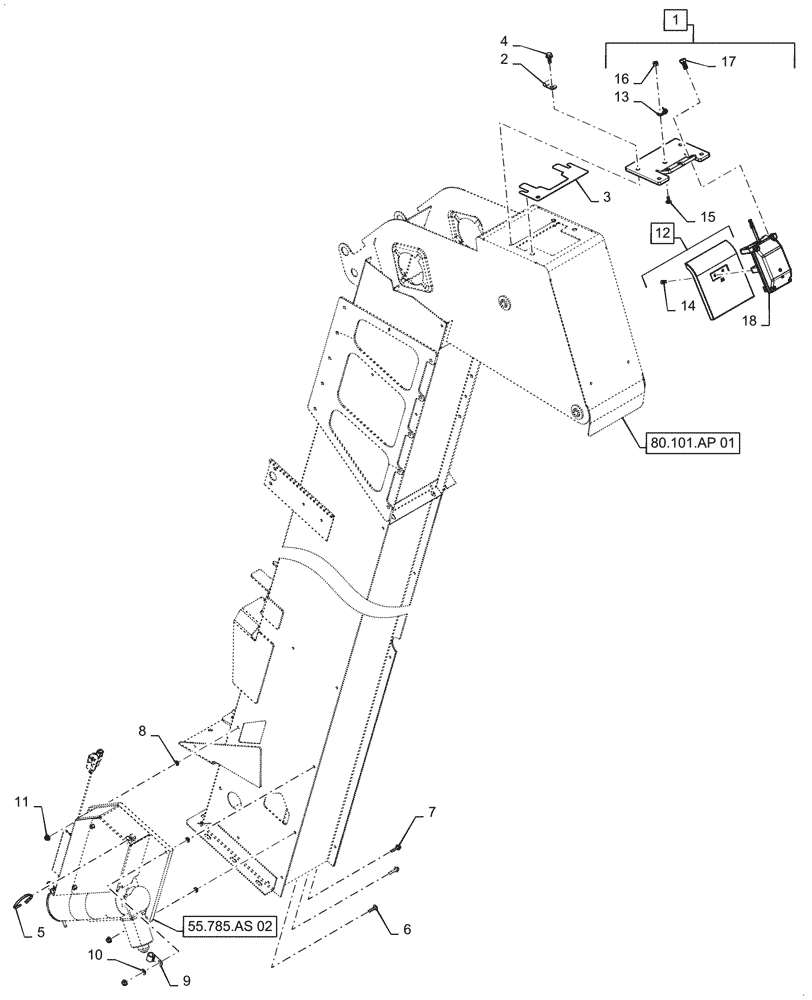

Запчасти Case IH 7088 (55.785.AS[01]) - VAR - 722611 - ELEVATOR YIELD MONITOR ASSY (55) - ELECTRICAL SYSTEMS

1

47855247

SENSOR

Mass Flow, Incl 12 - 18

1шт.

1

47855247R

REMAN-SENSOR

Mass Flow, Incl 12 - 18

1шт.

1

47855247C

CORE-SENSOR

Return Number

1шт.

2

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

3

87612334

RUBBER SEAL

Flow Sensor

1шт.

4

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

5

473321C1

CABLE TIE,8" OAL x 0.098" W

1шт.

6

368798A1

SCREW,Truss HD, 1/4" - 20 x 1", Gr 8

2шт.

7

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

8

425-144

JAM NUT,Jam, 1/4"-20, G5

4шт.

9

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

10

495-11028

WASHER,1/4", SAE

1шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

12

47592682

PLATE

Impact, Incl 14

1шт.

13

10440990

CLAMP,6mm, Coat, P Type

1шт.

14

81960

SCREW,1/4" - 20 x 1/2"

2шт.

15

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

1шт.

16

353308

NUT,M6 x 1.0, Cl 8

1шт.

17

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

18

87694153

CONTACT HOUSING,Female, 4 Cavities

1шт.
