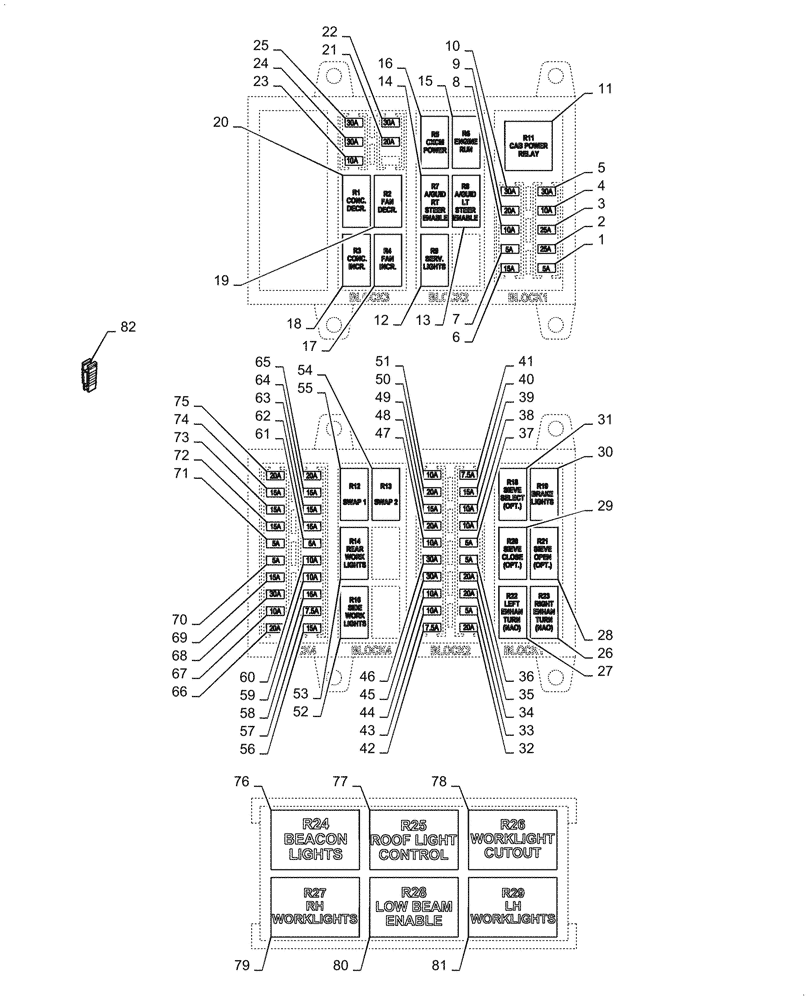

Запчасти Case IH 7088 (55.510.AF[12]) - FUSE BOX, CAB MAIN (55) - ELECTRICAL SYSTEMS

1

84153830

FUSE,5A, Mini, Beige

F-001, Moisture Sensor

1шт.

2

84127705

FUSE,25A, Mini, White

F-002, Air Seat

1шт.

3

84127705

FUSE,25A, Mini, White

F-003, Deck Plates

1шт.

4

84127702

FUSE,10A, Mini, Red

F-004, Backup Alarm

1шт.

5

84127708

FUSE,30A, Mini, Green

F-005, Beacon Lights/Bin Almost Full

1шт.

6

84127703

FUSE,15A, Mini, Blue

F-006, Bypass Motor

1шт.

7

84153830

FUSE,5A, Mini, Beige

F-007, CODI Display Switched B+

1шт.

8

84127702

FUSE,10A, Mini, Red

F-008, Service Tool

1шт.

9

84127704

FUSE,20A, Mini, Yellow

F-009, Under Panel Lights

1шт.

10

84127708

FUSE,30A, Mini, Green

F-010, Key Switch Power

1шт.

11

84337245

RELAY

R-011, Cab Power Relay

1шт.

12

84543528

RELAY,12V, 20A, Micro

R-009, Service Lights (Opt.)

1шт.

13

84543528

RELAY,12V, 20A, Micro

R-008, Left Automatic Steering Enable

1шт.

14

84543528

RELAY,12V, 20A, Micro

R-007, Right Automatic Steering Enable

1шт.

15

84543528

RELAY,12V, 20A, Micro

R-006, Engine Run

1шт.

16

84543528

RELAY,12V, 20A, Micro

R-005, CXCM Power

1шт.

17

84543528

RELAY,12V, 20A, Micro

R-004, Fan Increase

1шт.

18

84543528

RELAY,12V, 20A, Micro

R-003, Concave Increase

1шт.

19

84543528

RELAY,12V, 20A, Micro

R-002, Fan Decrease

1шт.

20

84543528

RELAY,12V, 20A, Micro

R-001, Concave Decrease

1шт.

21

84127704

FUSE,20A, Mini, Yellow

F-015, Header Worklights

1шт.

22

84127704

FUSE,20A, Mini, Yellow

F-014, Spread Pattern Adjustment/2 Speed Hydrostatic Drive

1шт.

23

84127702

FUSE,10A, Mini, Red

F-013, Sieve Adjust

1шт.

24

84127702

FUSE,10A, Mini, Red

F-012, Concave Control

1шт.

25

84127702

FUSE,10A, Mini, Red

F-011, Fan Control

1шт.

26

84543528

RELAY,12V, 20A, Micro

R-023, Right Enhance Turn

1шт.

27

84543528

RELAY,12V, 20A, Micro

R-022, Left Enhance Turn

1шт.

28

84543528

RELAY,12V, 20A, Micro

R-021, Sieve Open (Opt.)

1шт.

29

84543528

RELAY,12V, 20A, Micro

R-020, Sieve Close (Opt.)

1шт.

30

84543528

RELAY,12V, 20A, Micro

R-019, Brake Lights

1шт.

31

84543528

RELAY,12V, 20A, Micro

R-018, Sieve Select (Opt.)

1шт.

32

84127704

FUSE,20A, Mini, Yellow

F-017, Dome Lights, horn, Cigar Lighter

1шт.

33

84153830

FUSE,5A, Mini, Beige

F-018, Hazard Flasher

1шт.

34

84127704

FUSE,20A, Mini, Yellow

F-019, Radio & A Post B+ Unswitched

1шт.

35

84127704

FUSE,20A, Mini, Yellow

F-020, Aux Power Connector B+ Unswitched

1шт.

36

84153830

FUSE,5A, Mini, Beige

F-021, Grain Tank Covers Switch

1шт.

37

84153830

FUSE,5A, Mini, Beige

F-022, Auto Guidance Enable

1шт.

38

84127702

FUSE,10A, Mini, Red

F-023, GPS Antenna/Flow Sensor

1шт.

39

84127702

FUSE,10A, Mini, Red

F-024, Radio Power

1шт.

40

84127703

FUSE,15A, Mini, Blue

F-025, Auto Guidance

1шт.

41

84152583

FUSE,7.5A, Mini, Brown

F-026, RH Tail/Position Lights

1шт.

42

84152583

FUSE,7.5A, Mini, Brown

F-036, LH Tail/Position Lights

1шт.

43

84127702

FUSE,10A, Mini, Red

F-035, Wipers

1шт.

44

84127702

FUSE,10A, Mini, Red

F-034, Header Detect B+

1шт.

45

84127708

FUSE,30A, Mini, Green

F-033, Blower Motor

1шт.

46

84127708

FUSE,30A, Mini, Green

F-032, Fan/Rotor/Concave Adustment/Switches

1шт.

47

84127702

FUSE,10A, Mini, Red

F-031, Turn/Brake Light

1шт.

48

84127704

FUSE,20A, Mini, Yellow

F-030, Fuel Pump

1шт.

49

84127703

FUSE,15A, Mini, Blue

F-029, HVAC Control

1шт.

50

84127704

FUSE,20A, Mini, Yellow

F-028, Operator Presents/Console

1шт.

51

84127702

FUSE,10A, Mini, Red

F-027, Instrumentation/Grain Loss Monitor

1шт.

52

84543528

RELAY,12V, 20A, Micro

R-016, Side Work Lights

1шт.

53

84543528

RELAY,12V, 20A, Micro

R-014, Rear Work Lights

1шт.

54

84543528

RELAY,12V, 20A, Micro

R-013, Swap 2

1шт.

55

84543528

RELAY,12V, 20A, Micro

R-012, Swap 1

1шт.

56

84127703

FUSE,15A, Mini, Blue

F-037, Pressurizer Fan

1шт.

57

84152583

FUSE,7.5A, Mini, Brown

F-038, Parking Brake

1шт.

58

84127703

FUSE,15A, Mini, Blue

F-039, Reel/Header/Unload Control

1шт.

59

84127702

FUSE,10A, Mini, Red

F-040, Feeder/Separator

1шт.

60

84127702

FUSE,10A, Mini, Red

F-041, 4WD/VAR Propulsion

1шт.

61

84153830

FUSE,5A, Mini, Beige

F-042, Engine ECU

1шт.

62

84127703

FUSE,15A, Mini, Blue

F-043, Turn Signals

1шт.

63

84127708

FUSE,30A, Mini, Green

F-044, LH Rooflights

1шт.

64

84127708

FUSE,30A, Mini, Green

F-045, RH Rooflights

1шт.

65

84127704

FUSE,20A, Mini, Yellow

F-046, Worklights

1шт.

66

84127704

FUSE,20A, Mini, Yellow

F-056, Chaff Spreader, Lube

1шт.

67

84127702

FUSE,10A, Mini, Red

F-055, Backlighting

1шт.

68

84127708

FUSE,30A, Mini, Green

F-054, Sieve Relays

1шт.

69

84127703

FUSE,15A, Mini, Blue

F-053, Remote Sieve Control

1шт.

70

84153830

FUSE,5A, Mini, Beige

F-052 Trailer Brake Lights

1шт.

71

84153830

FUSE,5A, Mini, Beige

F-051, CODI

1шт.

72

84127703

FUSE,15A, Mini, Blue

F-050, Low Beams

1шт.

73

84127703

FUSE,15A, Mini, Blue

F-049, High Beams

1шт.

74

84127703

FUSE,15A, Mini, Blue

F-048, Side Worklights

1шт.

75

84127708

FUSE,30A, Mini, Green

F-047, Lighting Controls

1шт.

76

84543528

RELAY,12V, 20A, Micro

R-024, Beacon Lights

1шт.

77

84543528

RELAY,12V, 20A, Micro

R-025, Roof Light Control

1шт.

78

84543528

RELAY,12V, 20A, Micro

R-026, Worklight Cutout

1шт.

79

84543528

RELAY,12V, 20A, Micro

R-027, RH Worklights

1шт.

80

84543528

RELAY,12V, 20A, Micro

R-028, Low Beam Enable

1шт.

81

84543528

RELAY,12V, 20A, Micro

R-029, LH Worklights

1шт.

82

84199546

TOOL

Fuse Puller

1шт.
