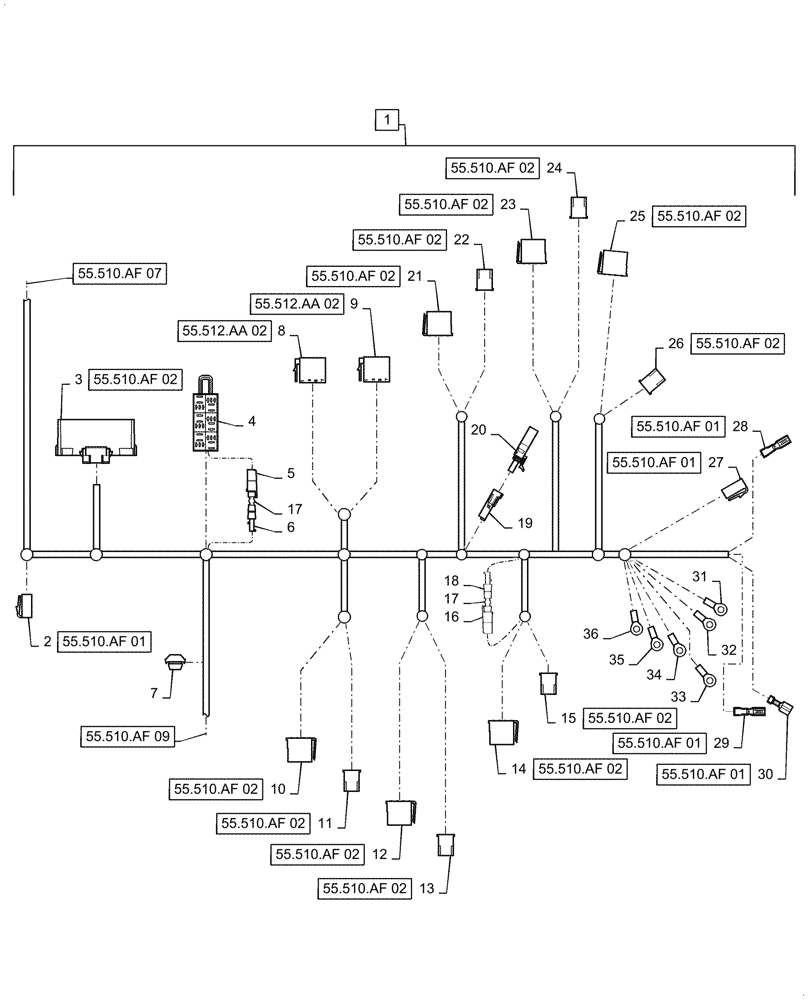

Запчасти Case IH 7088 (55.510.AF[08]) - WIRE HARNESS, CAB MAIN, CONTINUED (55) - ELECTRICAL SYSTEMS

1

84600311

WIRE HARNESS

Cab Main, Incl 2 - 36, Start Serial: Y9G001395

1шт.

1

84131646

WIRE HARNESS

Cab Main, Incl 2 - 36, Serial Range: -Y9G001395

1шт.

2

87690957

TERMINAL

RH Speaker, X-057

1шт.

3

87693716

ELEC CONNECTOR

ATC, X-056

1шт.

3

198718A1

CONNECTOR, ELEC

ATC, X-056

1шт.

3

198719A1

CONNECTOR, ELEC

Lock, ATC, X-056

1шт.

4

182163A1

ELECTRO/HYD CONTACT

Base, Upper Relay Block, X-051

1шт.

4

144417A1

CONNECTING BLOCK

Upper Relay Block, X-051

1шт.

4

182165A1

CONNECTOR, ELEC

Upper Relay Block, X-051

1шт.

5

739070C1

CONNECTOR, ELEC

Diode, X-143

1шт.

6

631801C1

CONNECTION

Diode, X-144

1шт.

7

122549A1

GROMMET

Bulkhead

1шт.

8

292494A1

ELEC CONNECTOR

Radio, X-048

1шт.

9

292495A1

ELEC CONNECTOR

Radio, X-047

1шт.

10

225214C1

CONNECTOR, ELEC

HID Light Switch, X-146

1шт.

11

225214C1

CONNECTOR, ELEC

HID Light Switch, X-147

1шт.

12

225214C1

CONNECTOR, ELEC

Wiper/Washer Switch, X-046

1шт.

13

225214C1

CONNECTOR, ELEC

Wiper/Washer Switch, X-045

1шт.

14

225214C1

CONNECTOR, ELEC

Hazard/Towing Switch, X-042

1шт.

15

225214C1

CONNECTOR, ELEC

Hazard/Towing Switch, X-041

1шт.

16

739070C1

CONNECTOR, ELEC

Diode, X-053

1шт.

17

113699A1

RECTIFIER

Diode

1шт.

18

631801C1

CONNECTION

Diode, X-052

1шт.

19

245485C1

ELEC CONNECTOR,Male, 3 Pin

Diode Module, X-063

1шт.

20

A187874

MODULE

Diode, X-063A

1шт.

21

225214C1

CONNECTOR, ELEC

Field Light Switch, X-044

1шт.

22

225214C1

CONNECTOR, ELEC

Field Light Switch, X-043

1шт.

23

225214C1

CONNECTOR, ELEC

Beacon Switch, X-040

1шт.

24

225214C1

CONNECTOR, ELEC

Beacon Switch, X-039

1шт.

25

225214C1

CONNECTOR, ELEC

Grain Tank Covers, X-015

1шт.

26

225214C1

CONNECTOR, ELEC

Grain Tank Covers, X-054

1шт.

27

87690957

TERMINAL

LH Speaker, X-036

1шт.

28

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

LH Dome Light

1шт.

29

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

LH Dome Light

1шт.

30

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

LH Dome Light

1шт.

31

84398834

TERMINAL

Chassis Ground Junction

1шт.

32

84398834

TERMINAL

Chassis Ground Junction

1шт.

33

84398834

TERMINAL

Chassis Ground Junction

1шт.

34

84398834

TERMINAL

Chassis Ground Junction

1шт.

35

84398834

TERMINAL

Chassis Ground Junction

1шт.

36

84398834

TERMINAL

Chassis Ground Junction

1шт.
