Запчасти Case IH 7088 (55.418.AA) - INSTRUMENTATION SENSORS (55) - ELECTRICAL SYSTEMS

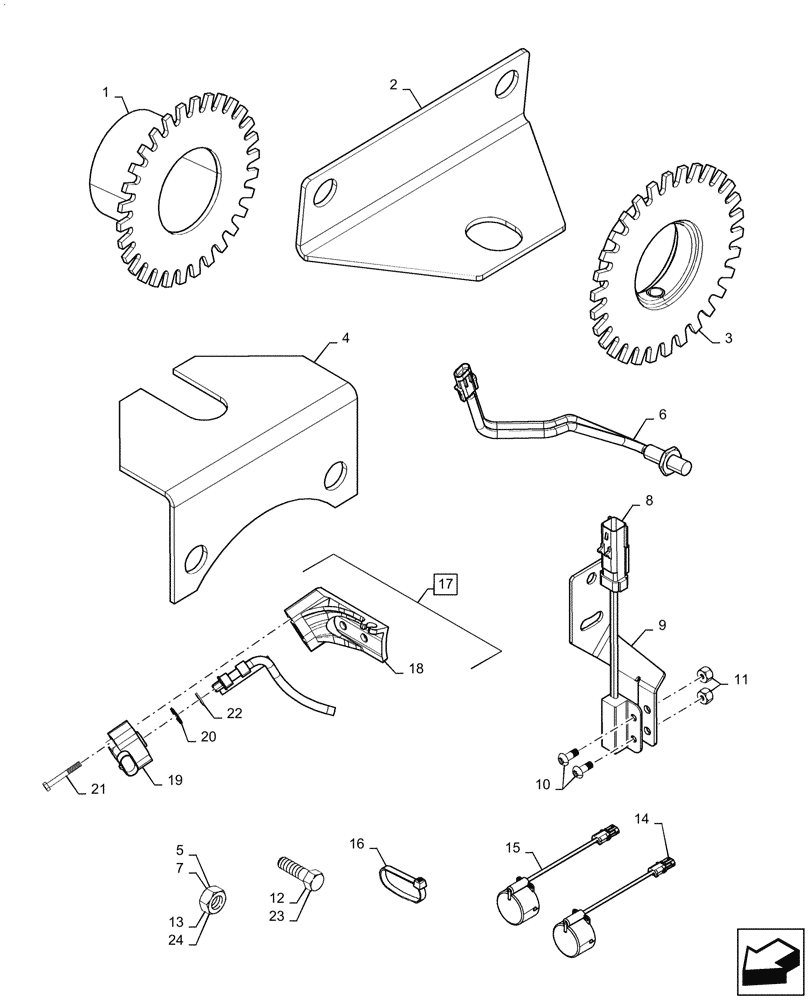

Схема запчастей Case IH 7088 - (55.418.AA) - INSTRUMENTATION SENSORS (55) - ELECTRICAL SYSTEMS
2
14
16
12
11
21
18
8
19
9
22
10
6
20
4
23
3
13
7
1
24
17
5
15

Артикул

Название

Примечание

Количество

1

1979965C1

ROTOR

Speed Pickup

1шт.

2

1301239C1

BRACKET

Rotor Speed Pickup

1шт.

3

1541555C1

SPROCKET

Speed Pickup, Cleaning Fan

1шт.

4

1541554C1

SUPPORT

Fan Speed Tach

1шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

6

245193C2

SENSOR

Transducer, MPH + Fan RPM

4шт.

7

425-1512

JAM NUT,Jam, 3/4"-10, G5

2шт.

8

87392235

SENSOR

Reed Non-Contact Normally Open

1шт.

9

87738355

BRACKET

Shoe Speed Sensor

1шт.

10

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

2шт.

11

231-14109

LOCK NUT,#10-24, GB

2шт.

12

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

14

1345482C3

TRANSMITTER

Tailings Auger Speed Sensor

1шт.

15

87389529

PROXIMITY SWITCH

Clean Grain Speed

1шт.

16

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

17

87368474

SENSOR

Tailing, Inc. 18 - 22

1шт.

18

225762A6

HOUSING

Tailings Sensor

1шт.

19

87368468

SENSOR

Rotary Position

1шт.

20

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

21

463-11024

SCREW,Hex Hd, #10-24 x 1 1/2"

2шт.

22

239809A1

WASHER,8mm ID x 14mm OD x 1.2mm Thk

1шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

24

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.

Выбрано товаров: 24
