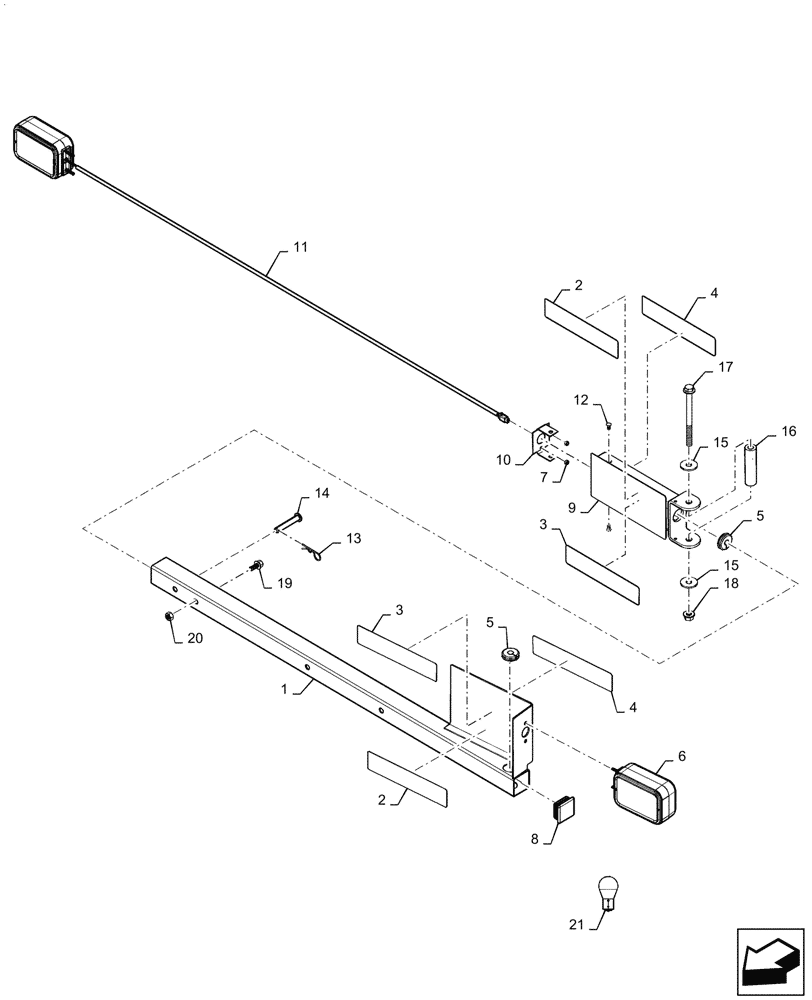

Запчасти Case IH 7088 (55.404.AQ[04]) - EXTREMITY LIGHT (55) - ELECTRICAL SYSTEMS

1

87470725

SUPPORTING ARM

1шт.

2

87105393

REFLECTOR

Supporting Arm

2шт.

3

87105394

REFLECTOR

Supporting Arm

2шт.

4

87105392

REFLECTOR

Supporting Arm

2шт.

5

87015294

GROMMET,1/2" ID x 1-1/2" OD x 0.438" Thk

2шт.

6

87735063

LIGHT ASSY.,12V, Amber

Warning Right Hand

1шт.

7

86508813

NUT,M5, Cl 8

4шт.

8

87518247

PLUG

Square Tube

1шт.

9

87109527

ARM

Supporting

1шт.

10

87105372

BRACKET

Supporting Arm

1шт.

11

87735064

LIGHT ASSY.,12V, Amber

Warning Left Hand

1шт.

12

86511855

SCREW,Flat, M6 x 1.0 x 12mm OAL, Cl 4.8

2шт.

13

87035064

CLEVIS PIN,12mm OD x 70mm L

1шт.

14

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

1шт.

15

86997936

WASHER,12.7mm ID x 38.1mm OD x 3.18mm Thk

2шт.

16

87105383

SPACER,12.7mm ID x 25.4mm OD x 96.4mm L

1шт.

17

87030021

BOLT,Hex, M12 x 150mm, Cl 10.9

1шт.

18

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

19

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

20

86500689

NUT,M10 x 1.5, Cl 10

1шт.

21

529068

BULB,#1156, 12V, 21W

1шт.
