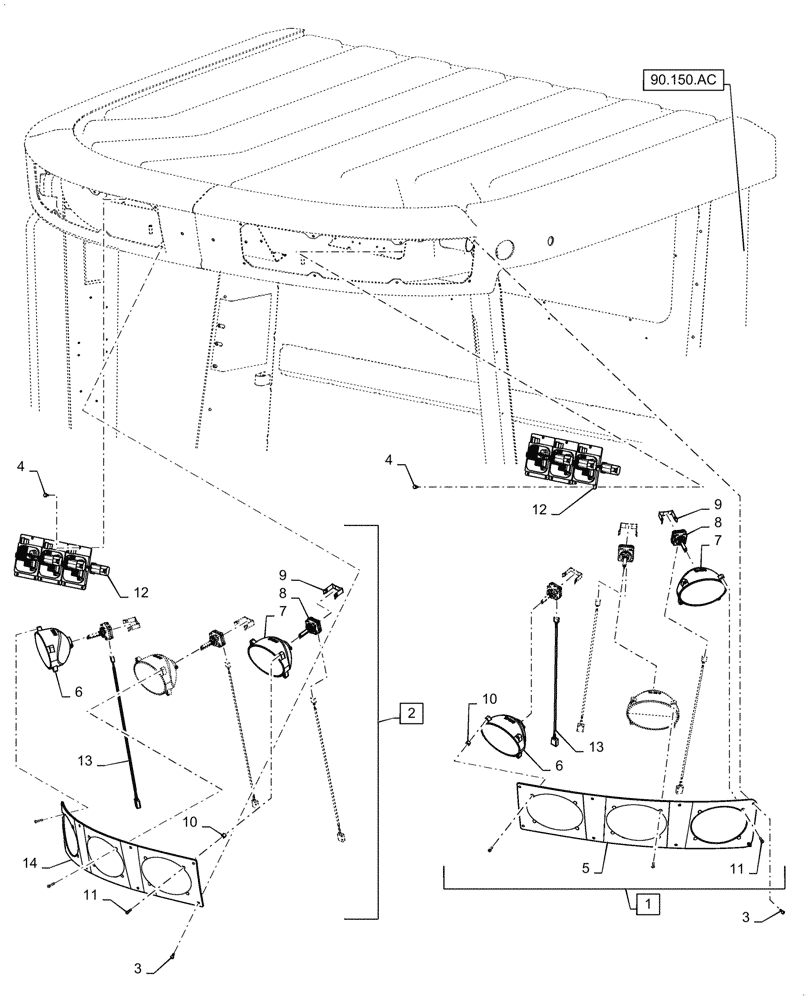

Запчасти Case IH 7088 (55.404.AQ[03]) - VAR - 425213 - CAB WORK LIGHT, DELUXE, HID (55) - ELECTRICAL SYSTEMS

1

87693086

LIGHT ASSY.

Work, Cab, Deluxe HID, Incl 5 - 13

1шт.

2

87693085

LIGHT ASSY.

Work, Cab, Deluxe HID, Incl 6 - 14

1шт.

3

86900238

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 3/4"

16шт.

4

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

18шт.

5

87679844

BEZEL

Work Light, LH

1шт.

6

87693262

LIGHT ASSY.

Trap, HID

2шт.

7

87106354

HEADLAMP

HID

4шт.

8

87722023

BULB,HID, 85V, 35W

6шт.

9

87106287

CLIP

Locking

6шт.

10

87704446

SPACER

Lamp Housing

4шт.

11

87106305

SCREW

Mounting

24шт.

12

87722022

BALLAST

4 Pin Mount, 12V

6шт.

13

87722021

WIRE HARNESS

HID Work Light

6шт.

14

87679840

BEZEL

Work Light, RH

1шт.
