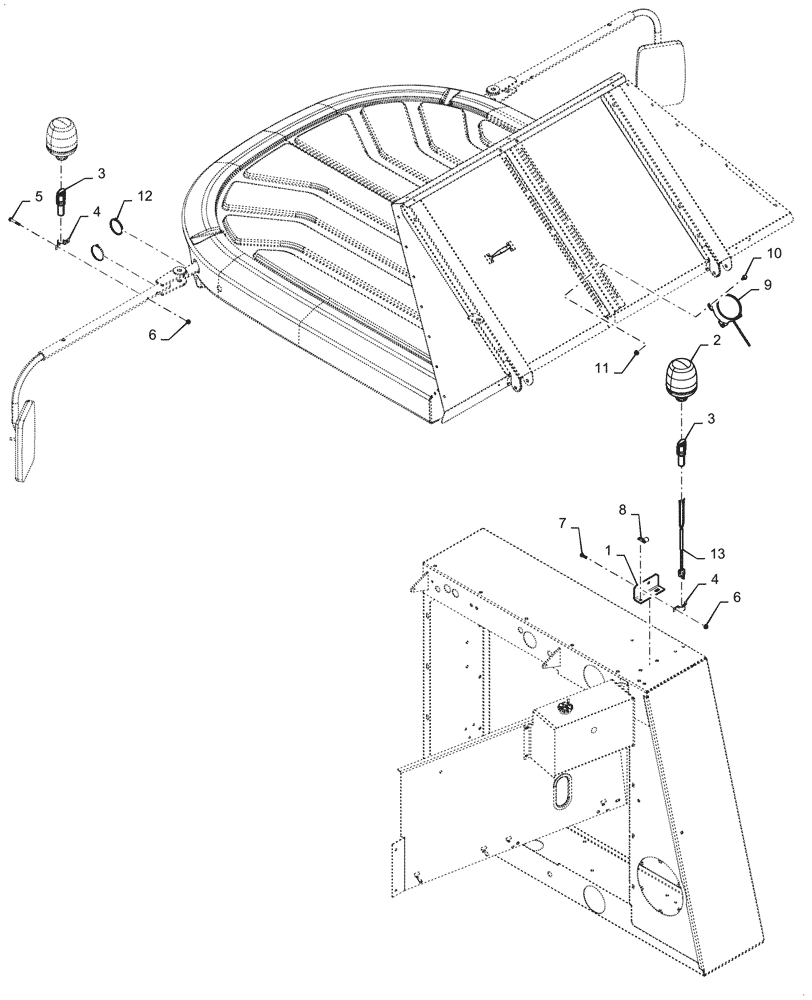

Запчасти Case IH 7088 (55.404.AC) - BEACON LIGHT (55) - ELECTRICAL SYSTEMS

1

87741406

BRACKET

Light Support

1шт.

2

84126541

BEACON

Light, 12V

2шт.

3

244106A1

ELEC CONNECTOR

Support

2шт.

4

3177099R1

CLAMP

Beacon Collar

2шт.

5

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

6

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

7

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

, Serial Range: -Y9G002646

2шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

, Start Serial: Y9G002646

2шт.

8

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

9

87701176

SENSOR

Grain Bin, 3/4 Full

1шт.

10

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

12

289862C1

CABLE TIE,3/16" x 7"

3шт.

13

87345075

WIRE HARNESS

Beacon Light

1шт.
