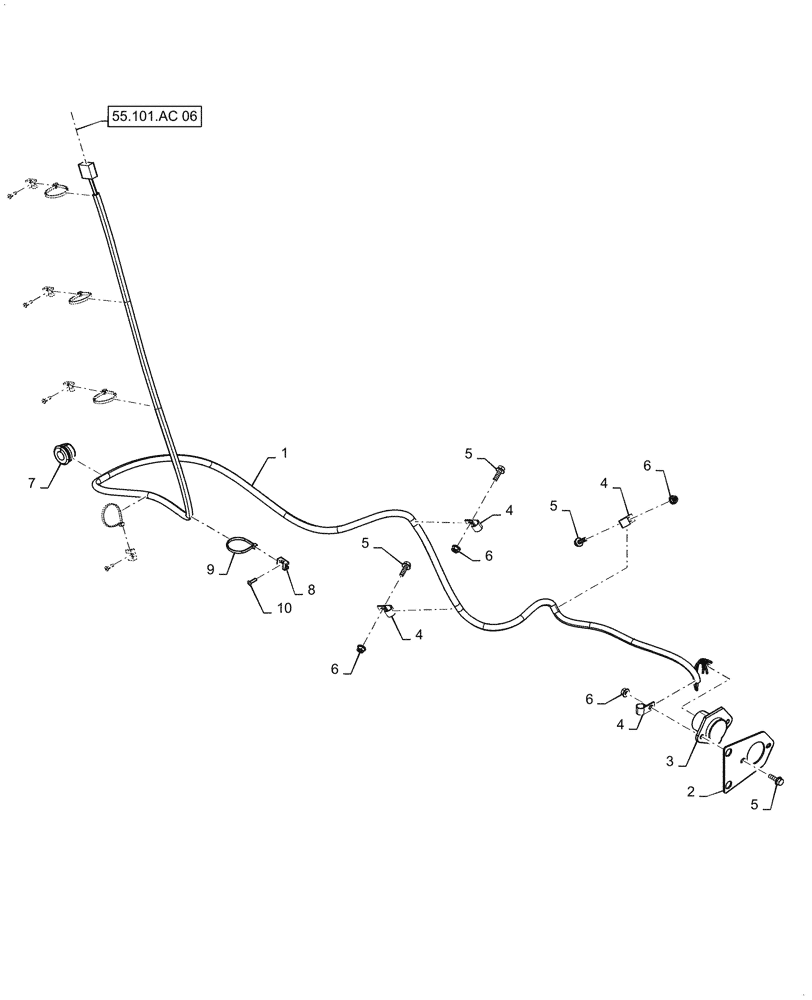

Запчасти Case IH 7088 (55.130.AR) - TRAILER HITCH HARNESS (55) - ELECTRICAL SYSTEMS

1

86604178

WIRE HARNESS

Trailer Hitch

1шт.

2

87499555

BRACKET

Connector Plate

1шт.

3

265927

POWER SOCKET

Trailer Electrical

1шт.

4

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

5

87698833

BOLT,M8 x 33.1mm, Cl 10.9

5шт.

6

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

7

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

8

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

5шт.

9

86566989

CABLE TIE,208mm L

5шт.

10

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

5шт.
