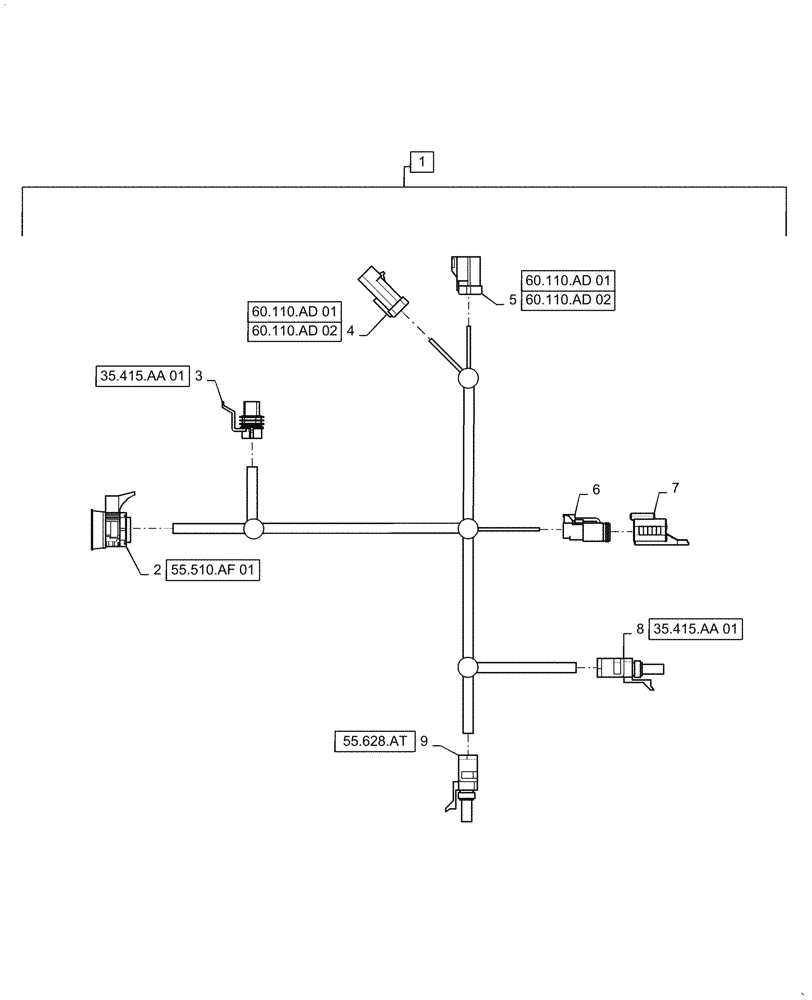

Запчасти Case IH 7088 (55.101.AC[07]) - WIRE HARNESS, LEFT FRONT (55) - ELECTRICAL SYSTEMS

1

87742265

WIRE HARNESS

Left Front, Incl 2 - 9

1шт.

2

84146292

To Cab, X-002

ELEC CONNECTOR

1шт.

3

84078681

WIRE CONNECTOR,Female

Header Lift Pressure, X-201

1шт.

4

87382926

WIRE CONNECTOR,Female, 14 Cavities

To Feeder Harness, X-204

1шт.

4

84395356

TERMINAL,Female, 2.8mm, 18-20

To Feeder Harness, X-204

7шт.

4

84395358

TERMINAL

To Feeder Harness, X-204

7шт.

5

87382927

ELEC CONNECTOR,Male, 14 Cavities

To Feeder Harness, X-205

1шт.

5

84395362

TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range

To Feeder Harness, X-205

7шт.

5

84395363

TERMINAL

To Feeder Harness, X-205

7шт.

6

87695909

ELEC CONNECTOR,Female, 2 Pole

Vertical Knife, X-211

1шт.

7

84391159

WIRE CONNECTOR

Dust, X-211A

1шт.

8

87692855

CONTACT HOUSING,Male, 2 Cavities

Feeder Speed Sensor, X-214

1шт.

9

87692855

CONTACT HOUSING,Male, 2 Cavities

Rotor Speed, X-203

1шт.
