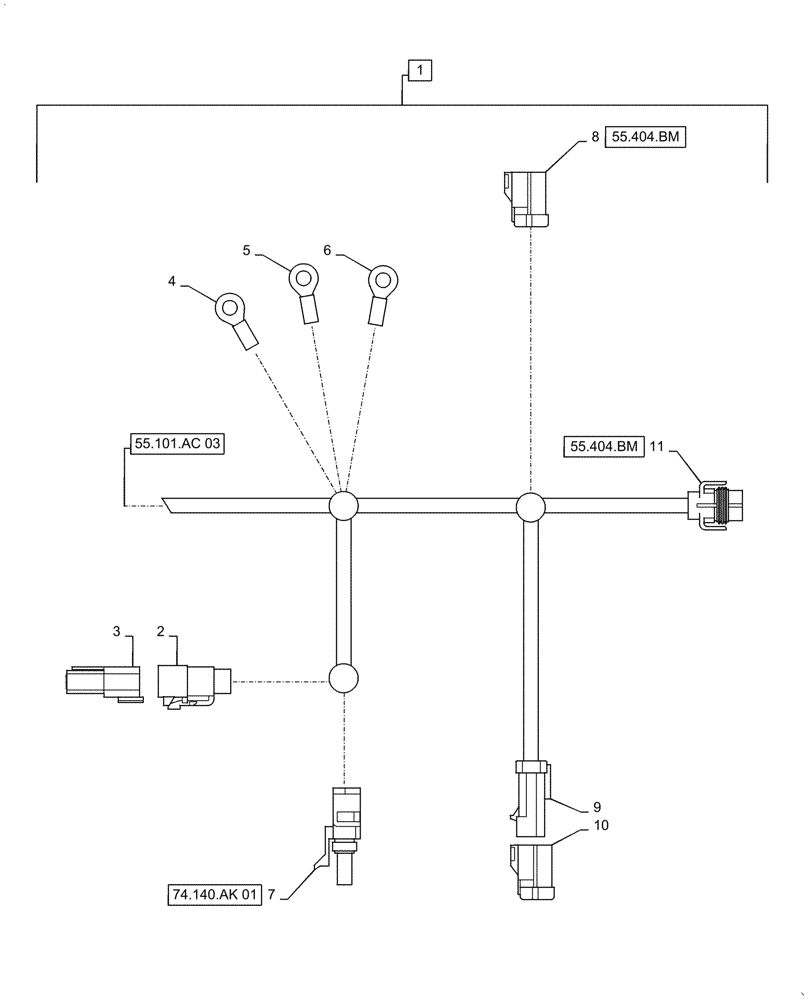

Запчасти Case IH 7088 (55.101.AC[04]) - WIRE HARNESS, RIGHT MAIN, CONTINUED (55) - ELECTRICAL SYSTEMS

1

87676240

WIRE HARNESS

Right Main, Incl 2 - 11, Serial Range: -Y9G002283

1шт.

1

84206165

WIRE HARNESS

Right Main, Incl 2 - 11, Start Serial: Y9G002283

1шт.

2

87696138

ELEC CONNECTOR

Nav II Diagnostic, X-161

1шт.

3

87700105

ELEC CONNECTOR

Dust Cap, X-161A

1шт.

4

84474041

TERMINAL

Ring, Chassis Ground

1шт.

5

84474041

TERMINAL

Ring, Chassis Ground

1шт.

6

84474041

TERMINAL

Ring, Chassis Ground

1шт.

7

87644909

WIRE CONNECTOR,Female, 3 Pins

Tailings Volume Sensor, X-187

1шт.

8

87382918

WIRE CONNECTOR,Female, 6 Cavities

Rear Tail/Stop Light, X-188

1шт.

8

84395358

TERMINAL

Rear Tail/Stop Light, X-188

6шт.

9

87382919

WIRE CONNECTOR,Male, 6 Cavities

Spread Pattern Control, X-191

1шт.

9

84395362

TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range

Spread Pattern Control, X-191

3шт.

9

84395363

TERMINAL

Spread Pattern Control, X-191

3шт.

10

87382918

WIRE CONNECTOR,Female, 6 Cavities

Dust Cap, X-191A

1шт.

10

84279937

PLUG,Apex, 2.80mm

Dust Cap, X-191A

6шт.

11

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

RH Rear Worklight, X-190

1шт.
