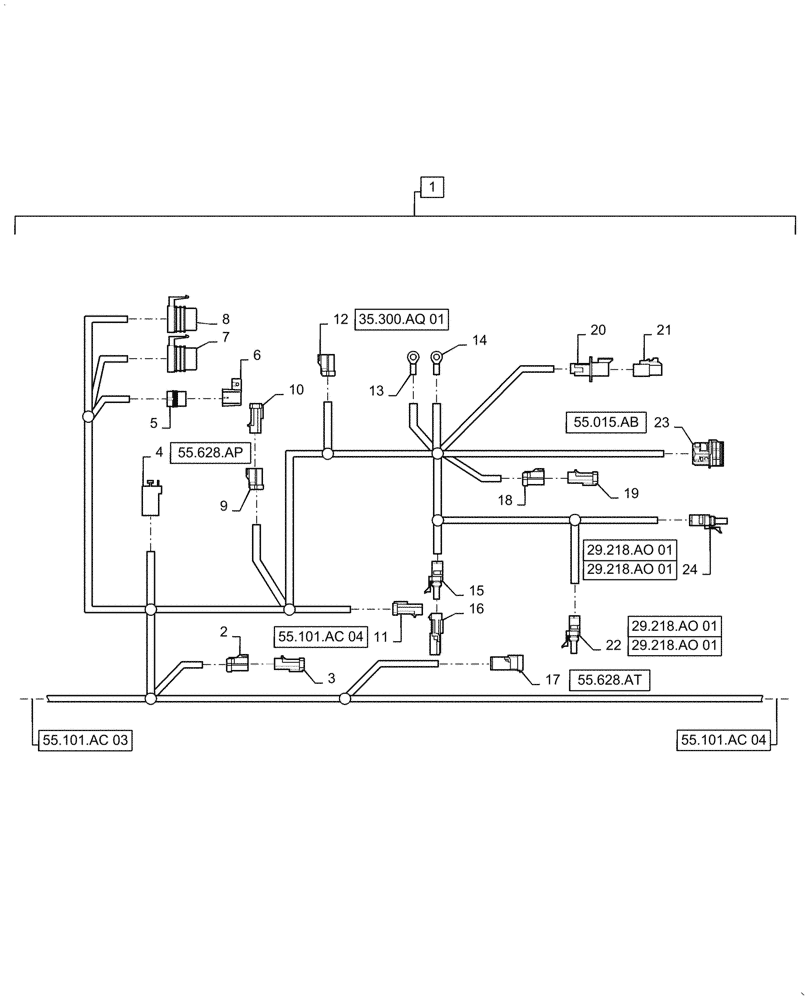

Запчасти Case IH 7088 (55.101.AC[03]) - WIRE HARNESS, RIGHT MAIN, CONTINUED (55) - ELECTRICAL SYSTEMS
![Схема запчастей Case IH 7088 - (55.101.AC[03]) - WIRE HARNESS, RIGHT MAIN, CONTINUED (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/caseih/5455306.png)
№
Артикул
Название
Примечание
Количество
1
87676240
WIRE HARNESS
Right Main, Incl 2 - 24, Serial Range: -Y9G002283
1шт.
1
84206165
WIRE HARNESS
Right Main, Incl 2 - 24, Start Serial: Y9G002283
1шт.
2
87382906
WIRE CONNECTOR,Female, 2 Cavities
Underpanel Lights, X-193
1шт.
2
84395358
TERMINAL
Underpanel Lights, X-193
2шт.
3
87382907
WIRE CONNECTOR,Male
Dust Cap, X-193A
1шт.
3
84279937
PLUG,Apex, 2.80mm
Dust Cap, X-193A
2шт.
4
87697538
Rotor Speed Motor, X-178
ELEC CONNECTOR
1шт.
5
87693710
ELEC CONNECTOR,Female 2 Cavities
In Line Fuse, X-333
1шт.
5
87688851
TERMINAL
In Line Fuse, X-333
1шт.
6
87688863
CAP
Dust, X-333A
1шт.
7
84147481
Relay B, X-335
ELEC CONNECTOR
1шт.
8
84147481
Relay A, X-334
ELEC CONNECTOR
1шт.
9
87382914
ELEC CONNECTOR,Female, 4 Cavities
Grain Tank Covers, X-195
1шт.
9
84395358
TERMINAL
Grain Tank Covers, X-195
4шт.
10
87382915
ELEC CONNECTOR,Male, 4 Pin
Dust Cap, X-195A
1шт.
10
84279937
PLUG,Apex, 2.80mm
Dust Cap, X-195A
4шт.
11
87382923
ELEC CONNECTOR,Male, 10 Cavities
To LH Harness, X-179
1шт.
11
84395362
TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range
To LH Harness, X-179
5шт.
11
84395363
TERMINAL
To LH Harness, X-179
5шт.
12
87382906
WIRE CONNECTOR,Female, 2 Cavities
Hydraulic Oil Level, X-180
1шт.
12
84395356
TERMINAL,Female, 2.8mm, 18-20
Hydraulic Oil Level, X-180
2шт.
13
84426121
TERMINAL
Terminal, Ring, B+ Stud
1шт.
14
84426120
TERMINAL
Starter Relay
1шт.
15
87692817
ELEC CONNECTOR
Lincoln Lube, X-183
1шт.
16
245487C1
ELEC CONNECTOR,Male, 4 Pin
Dust Cap, X-183A
1шт.
17
87692881
WIRE CONNECTOR
Rotor Limit Switch Harness, X-189
1шт.
18
87382906
WIRE CONNECTOR,Female, 2 Cavities
Underpanel Lights, X-197
1шт.
18
84395358
TERMINAL
Underpanel Lights, X-197
2шт.
19
87382907
WIRE CONNECTOR,Male
Dust Cap, X-197A
1шт.
19
84279937
PLUG,Apex, 2.80mm
Dust Cap, X-197A
2шт.
20
84146319
3 WAY CONNECTION
Plug In Service Light, X-194
1шт.
21
87695580
ELEC CONNECTOR,Female, 3 Pole
Dust Cap, X-194A
1шт.
22
87692855
CONTACT HOUSING,Male, 2 Cavities
Hydraulic Oil Temp, X-185
1шт.
23
84146290
ELEC CONNECTOR
Engine Harness, X-182
1шт.
24
87692855
CONTACT HOUSING,Male, 2 Cavities
Hydro Neutral Switch, X-184
1шт.
Выбрано товаров: 35
