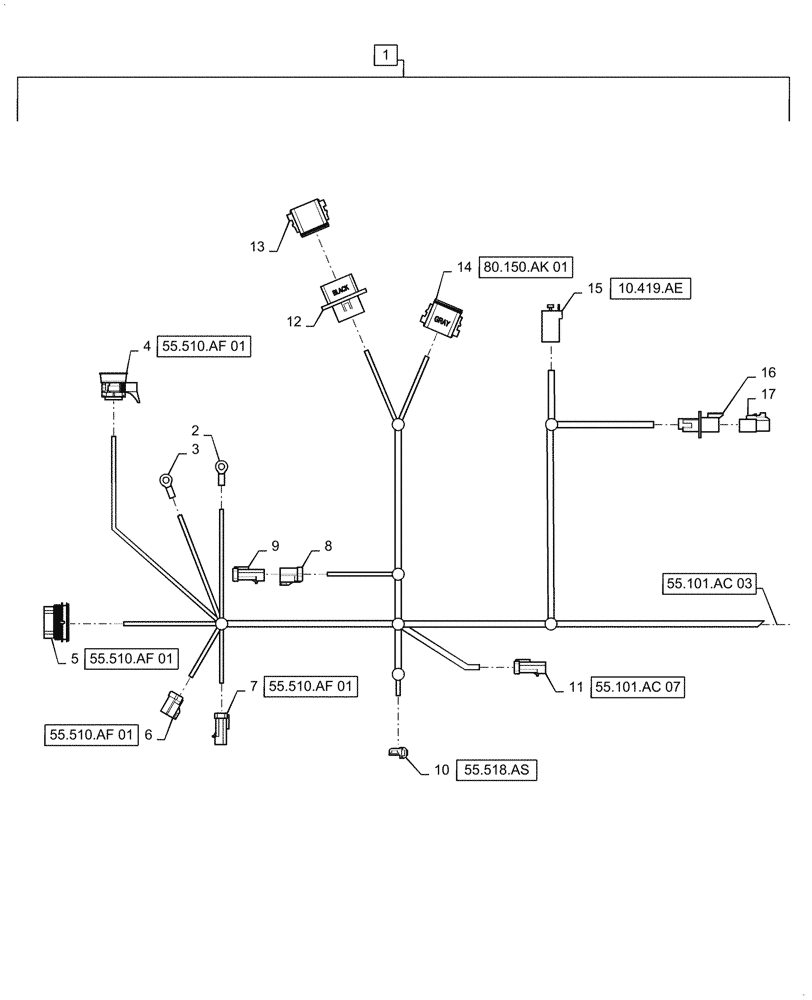

Запчасти Case IH 7088 (55.101.AC[02]) - WIRE HARNESS, RIGHT MAIN (55) - ELECTRICAL SYSTEMS

1

87676240

WIRE HARNESS

Right Main Chassis, Incl 2 - 17, Serial Range: -Y9G002283

1шт.

1

84206165

WIRE HARNESS

Right Main Chassis, Incl 2 - 17, Start Serial: Y9G002283

1шт.

2

84401307

TERMINAL

Ring, Chassis Ground

1шт.

3

84401307

TERMINAL

Ring, Chassis Ground

1шт.

4

84146292

Cab Connector, X-023

ELEC CONNECTOR

1шт.

5

87708485

WIRE CONNECTOR

Cab Connector, X-024

1шт.

6

87382914

ELEC CONNECTOR,Female, 4 Cavities

Auto Guidance "A", X-171

1шт.

6

84395356

TERMINAL,Female, 2.8mm, 18-20

Auto Guidance "A", X-171

3шт.

7

87382915

ELEC CONNECTOR,Male, 4 Pin

Auto Guidance "C", X-172

1шт.

7

84395362

TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range

Auto Guidance "C", X-172

3шт.

8

87382922

WIRE CONNECTOR,Female, 10 Cavities

Auto Guidance, X-192

1шт.

8

84395356

TERMINAL,Female, 2.8mm, 18-20

Auto Guidance, X-192

8шт.

9

87382923

ELEC CONNECTOR,Male, 10 Cavities

Dust Cap, X-192A

1шт.

9

84279937

PLUG,Apex, 2.80mm

Dust Cap, X-192A

1шт.

10

87693325

ELEC CONNECTOR,Female, 2 Cavities

Washer Pump, X-196

1шт.

11

87382927

ELEC CONNECTOR,Male, 14 Cavities

To Front Lower Harness, X-219

1шт.

11

84395362

TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range

To Front Lower Harness, X-219

7шт.

11

84395363

TERMINAL

To Front Lower Harness, X-219

7шт.

12

84146300

WIRE CONNECTOR

To CAN Flow Sensor Harness, X-173

1шт.

13

87338973

WIRE HARNESS

Jumper, X-173

1шт.

14

84146309

ELEC CONNECTOR

To Grain Tank Harness, X-174

1шт.

15

87697538

Fan Speed Motor, X-176

ELEC CONNECTOR

1шт.

16

84146319

3 WAY CONNECTION

Plug In Service Light, X-177

1шт.

17

87695580

ELEC CONNECTOR,Female, 3 Pole

Dust Cap, X-177A

1шт.
