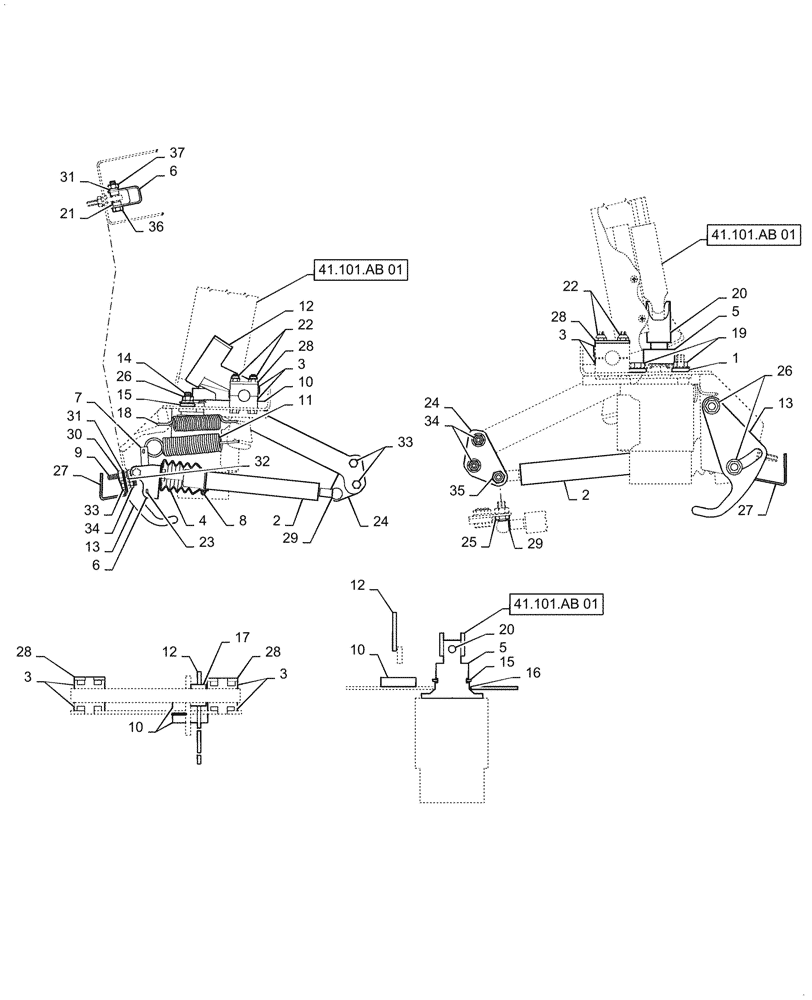

Запчасти Case IH 7088 (41.101.AB[02]) - STEERING COLUMN, LOWER (41) - STEERING

1

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

Bushing

4шт.

2

224357A1

GAS STRUT

Locking

1шт.

3

120326A2

BALL BEARING,24 mm

4шт.

4

195089A1

BOOT

Gas Strut

1шт.

5

120338A2

STEERING COLUMN

Pump

1шт.

6

224761A1

CLEVIS

Gas Spring

1шт.

7

130958A2

CHANNEL

Spring Release

1шт.

8

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

1шт.

9

224235A1

BALL JOINT

Rod End, Male

1шт.

10

130961A1

FOAM INSULATION

Seal

2шт.

11

130962A2

SPRING

Extension

1шт.

12

136798A1

PEDAL

Release

1шт.

13

446632A1

BRACKET

Pump

1шт.

14

136802A1

STUD

Pump Mounting

1шт.

15

136805A1

RETAINER

Stub Shaft

1шт.

16

148481C1

SEAL,40mm ID x 58mm OD x 8mm Thk

Hand Pump Shaft Dust

1шт.

17

185062R1

BUSHING

Column

1шт.

18

182652A1

SPRING

Pedal Return

1шт.

19

905-10035

BOLT,Hex Flg, M10 x 35mm

3шт.

20

38-32420

PIN,9.53mm OD x 31.75mm L, Coiled

1шт.

21

224089A1

SPACER

Ball Joint

2шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

23

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

24

223917A1

PLATE

Ball Stud Mounting

1шт.

25

142597A1

STUD

Ball

1шт.

26

825-51410

FLANGE NUT,M10, Flg Ser

3шт.

27

120143A4

SUPPORT

Front Cover

1шт.

28

185268A1

PLATE

Bearing Cover

2шт.

29

3233348R1

CLIP

Safety

1шт.

30

425-115

NUT,5/16"-24, G5

1шт.

31

492-11031

LOCK WASHER,5/16"

2шт.

32

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

33

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

34

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

35

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

36

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

37

425-105

NUT,5/16"-18, G5

1шт.
