Запчасти Case IH 7088 (35.410.AH) - FEEDER LIFT CYLINDER HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

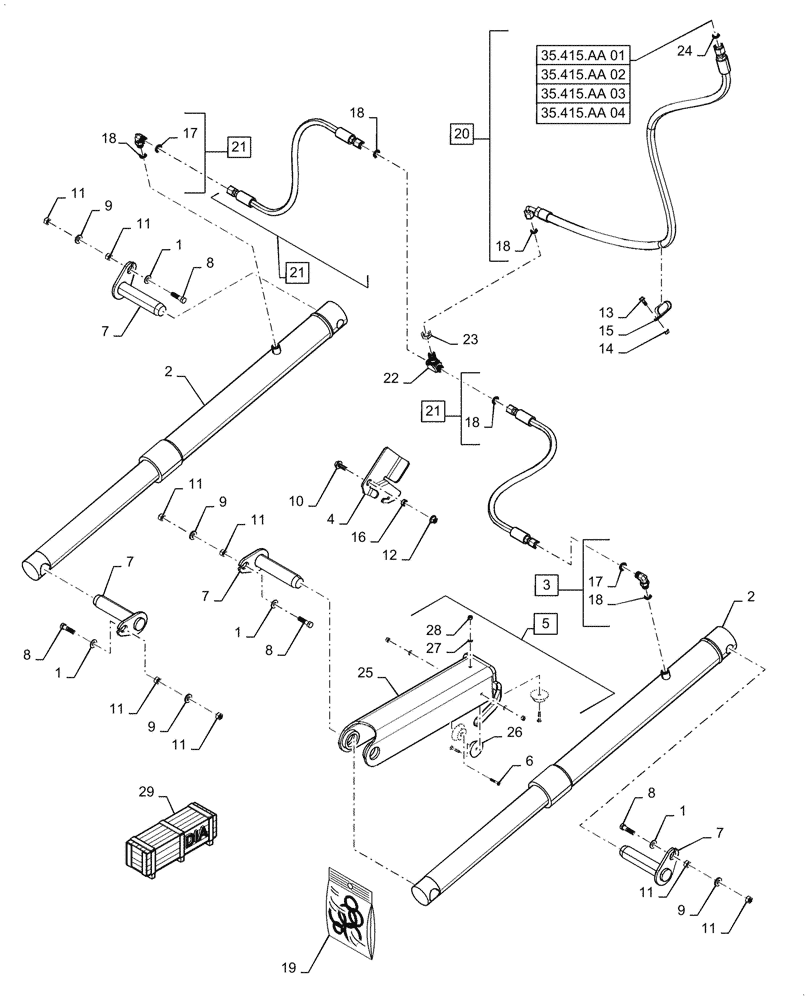

Схема запчастей Case IH 7088 - (35.410.AH) - FEEDER LIFT CYLINDER HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS
35.415.aa 01
9
21
19
23
20
1
11
15
27
9
26
18
7
21
9
22
11
3
11
8
1
17
10
21
11
6
11
2
11
18
13
18
24
16
18
7
17
7
9
5
11
18
2
4
25
29
8
8
12
11
7
1
14
28
8
1
35.415.aa 03
35.415.aa 02
35.415.aa 04

Артикул

Название

Примечание

Количество

1

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

2

87318621

LIFT CYLINDER,75mm Rod, 657.5mm Stroke

Feeder Lift

2шт.

3

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 17, 18

2шт.

4

87387776

BRACKET

Hanger, Safety Stand, 75mm

1шт.

5

87738685

DIA KIT, HARVESTER

Safety Stand, Incl 25 - 29

1шт.

6

1589127

SCREW,Flat Csk Hd, M6 x 35mm, Cl 8.8

3шт.

7

87332721

PIN ASSY.,41.27mm OD x 202mm L

Cylinder

4шт.

8

120080

BOLT,Hex, M12 x 45, 8.8

4шт.

9

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

10

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

1шт.

11

9706685

NUT,M12 x 1.75, Cl 8

8шт.

12

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

13

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

15

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

16

87387107

BUSHING

Hanger Pivot

1шт.

17

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

18

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

7шт.

19

87031097

SEAL KIT

Lift Cylinder

1шт.

20

87695295

HOSE ASSY.

Feeder Lift, Incl 18, 24

1шт.

21

87673511

HOSE ASSY.

Feeder Lift Cylinder, Incl 18

2шт.

22

201-452

TEE,13/16"-16, Blkhd Br

1шт.

23

87381289

BHD LOCK NUT,13/16"-16, 12mm OD

1/2" Tube

1шт.

24

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

25

87738678

CHANNEL

Large

1шт.

26

87499125

LINER

Stand

3шт.

27

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

28

832-46406

NUT,M6 x 1, Cl 8

3шт.

29

87730764

DIA KIT, HARVESTER

75mm Feeder Lift Cylinder, Incl 2, 5 Inst Sheet 87730801

1шт.

Выбрано товаров: 29
