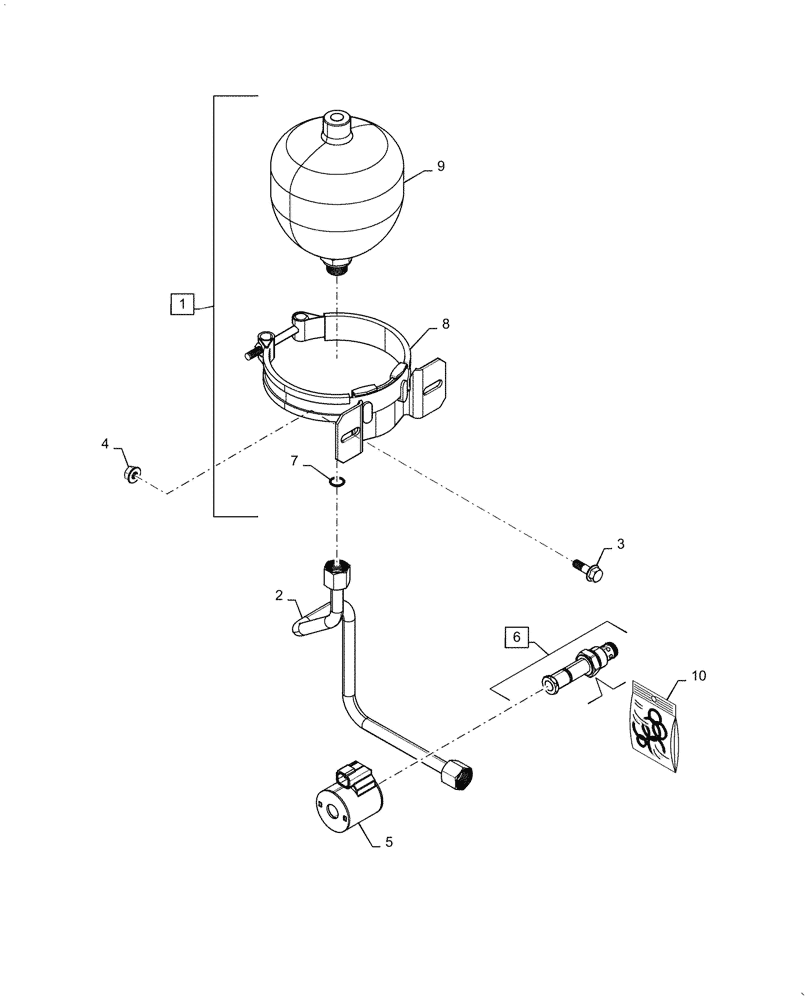

Запчасти Case IH 7088 (35.300.BQ) - ACCUMULATOR (35) - HYDRAULIC SYSTEMS

1

84225508

Hydraulic System, Incl 7 - 9

ACCUMULATOR

1шт.

2

87701839

TUBE,0.5"OD

Accumulator

1шт.

3

857-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 10.9

2шт.

4

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

5

87582525

COIL

Valve

1шт.

6

431547A1

VALVE

Solenoid Cartridge, Incl 10

1шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

84133868

CLAMP

Accumulator Mounting

1шт.

9

84225496

ACCUMULATOR

Tank

1шт.

10

329484A1

SEAL KIT

Solenoid Cartridge

1шт.
