Запчасти Case IH 7088 (35.300.BC[02]) - CHARGE PUMP HYDRAULIC OIL FILTER (35) - HYDRAULIC SYSTEMS

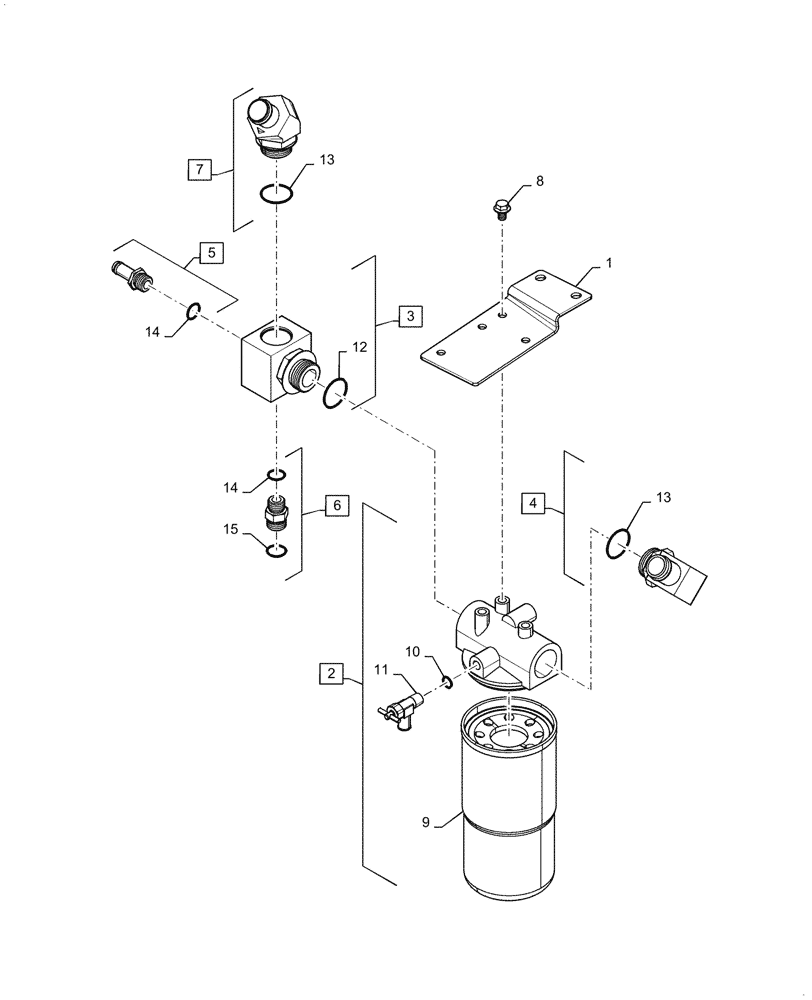

Схема запчастей Case IH 7088 - (35.300.BC[02]) - CHARGE PUMP HYDRAULIC OIL FILTER (35) - HYDRAULIC SYSTEMS
8
4
1
3
14
13
10
13
11
2
15
14
9
6
5
7
12

Артикул

Название

Примечание

Количество

1

87368138

SUPPORT

Charge Filter

1шт.

2

87689482

FILTER ASSY

Return W/ Drain Valve, Incl 9 - 11

1шт.

3

87674223

FITTING

Charge Pump Filter In, Incl 12

1шт.

4

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Incl 13

1шт.

5

217-175

FITTING,5/8" Hose Barb x 7/8" - 14 Male ORB

Incl 14

1шт.

6

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Incl 14, 15

1шт.

7

217-317

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Incl 13

1шт.

8

87021006

BOLT,M10 x 26.4mm, Cl 10.9

3шт.

9

A177605

HYDRAULIC OIL FILTER

Spin On

1шт.

10

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

1шт.

11

301803R1

SHUT-OFF VALVE

PTO Drain

1шт.

12

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

13

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Выбрано товаров: 15
