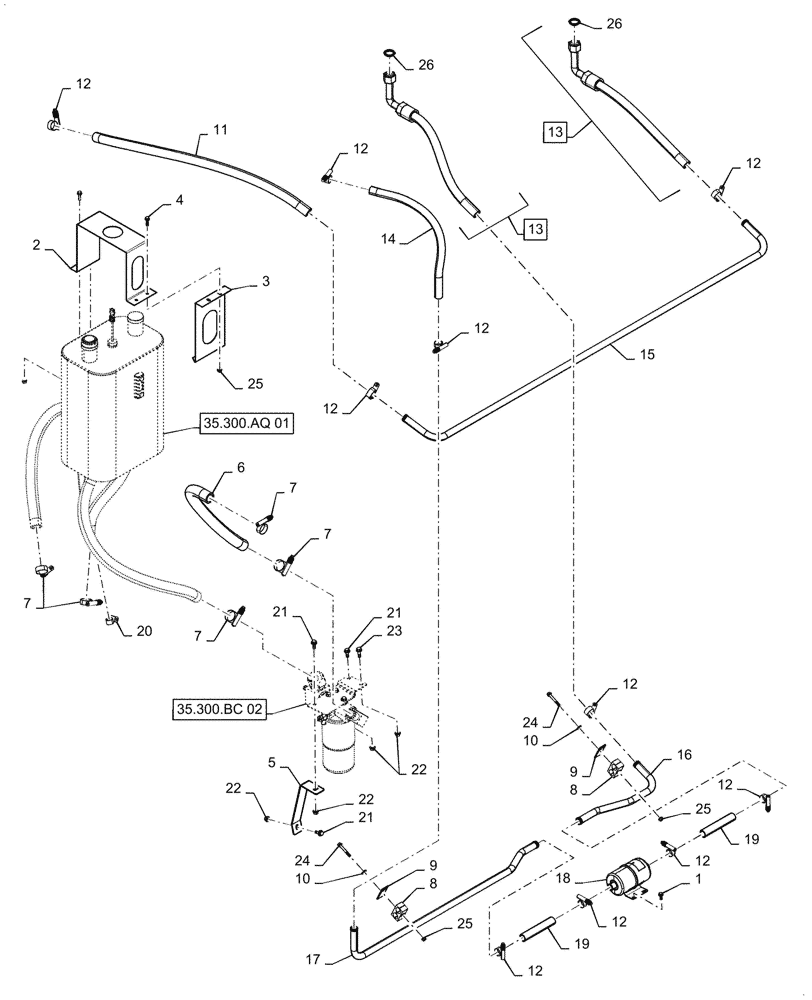

Запчасти Case IH 7088 (35.300.BC[01]) - HYDRAULIC OIL COOLER LINE (35) - HYDRAULIC SYSTEMS

1

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

2

87634141

BRACKET

Reservoir Clamp

1шт.

3

87634139

BRACKET

Reservoir

1шт.

4

87030775

BOLT,M8 x 38.1mm, Cl 10.9

4шт.

5

87751602

STRAP

Filter Support Bracket

1шт.

6

1541691C1

FLEXIBLE HOSE

Charge Pump Suction

1шт.

7

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

5шт.

8

1347071C1

CLAMP

Hydraulic Tube

2шт.

9

87000230

PLATE

Hose Clamp

2шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

11

87684755

HYDRAULIC HOSE,25.40 mm ID x 1020.00 mm

Cooler Return

1шт.

12

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

10шт.

13

84126917

HOSE ASSY.

Cooler Return, Incl 26

2шт.

14

87634668

HYDRAULIC HOSE,24.50" mm ID x 110.00 mm

Cooler Return

1шт.

15

87559991

TUBE,25.40 mm OD x 1785.3 mm L

Cooler Supply

1шт.

16

87684757

TUBE

Cooler Return

1шт.

17

87684756

TUBE,1" OD

Cooler Return

1шт.

18

87684758

HYDRAULIC OIL FILTER,27.4mm Hose Barb, 27.4mm Hose Barb, 203.71mm L

Return Screen

1шт.

19

87436551

HYDRAULIC HOSE,25.40 mm ID x 180.00 mm

Cooler Return

2шт.

20

87016721

HOSE CLAMP,17.5mm - 31.7mm

1шт.

21

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

3шт.

22

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

23

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

24

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

2шт.

25

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

26

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.
