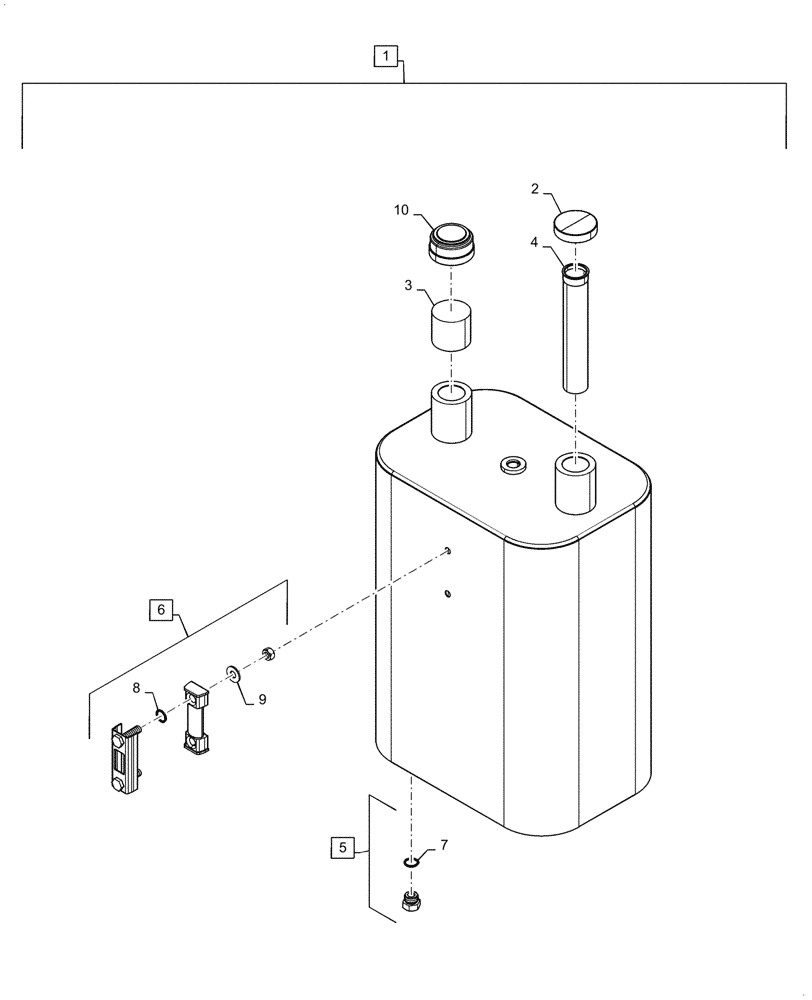

Запчасти Case IH 7088 (35.300.AQ[02]) - HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS

1

87602202

RESERVOIR ASSY.

Incl 2 - 10

1шт.

2

1346309C2

FILLER CAP

Non-Vented

1шт.

3

191116A1

BAFFLE

Filler Neck

1шт.

4

104407A1

SCREEN

Reservoir Fill

1шт.

5

218-5156

PLUG,Hex Hd, 3/4"-16 ORB

Incl 7

1шт.

6

87107405

LEVEL GAUGE

Incl 8, 9

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

9

720060

RUBBER WASHER

Level Gauge

2шт.

10

1272941C2

BREATHER

Cap

1шт.
