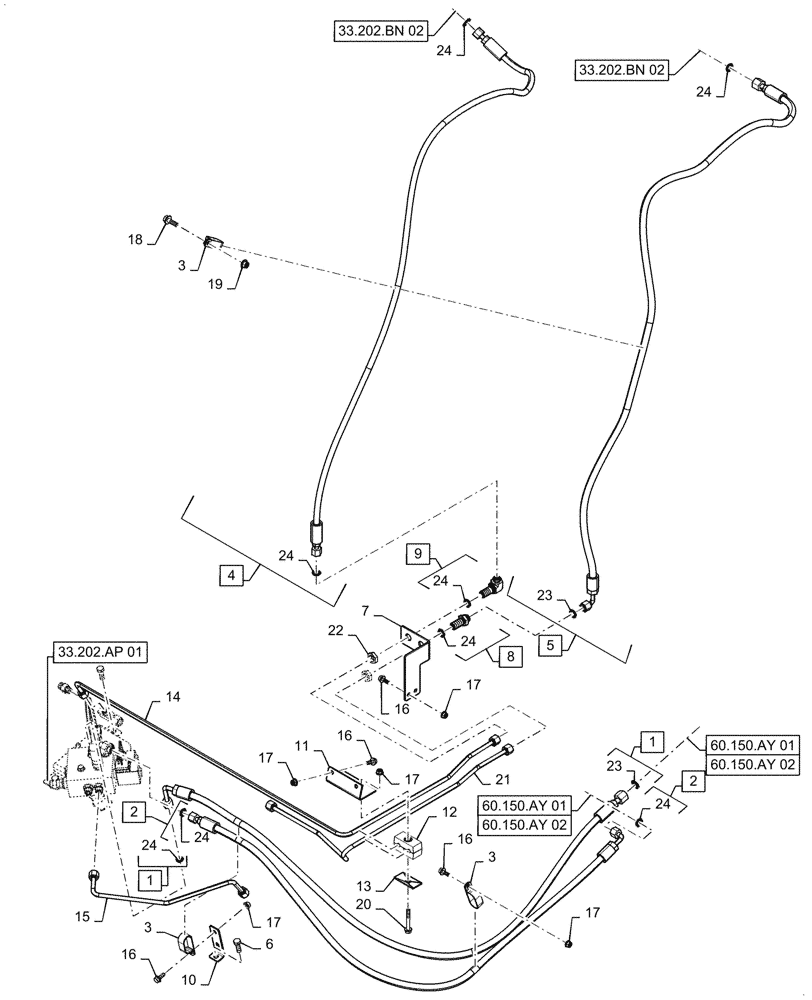

Запчасти Case IH 7088 (33.202.AP[02]) - BRAKE SERVICE LINE (33) - BRAKES & CONTROLS

1

87678372

HOSE ASSY.

Feeder Clutch Cylinder Retract, Incl 23, 24

1шт.

2

87678374

HOSE ASSY.

Feeder Clutch Cylinder Extend, Incl 24

1шт.

3

470375C1

CLAMP,1", Insul, 3/8" Bolt

3шт.

4

87388122

HOSE ASSY.

Service Brake, Top Left, Incl 24

1шт.

5

87547954

HOSE ASSY.

Right Service Brake, Incl 23, 24

1шт.

6

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

7

87544715

SUPPORT

Brake Line Bulkhead

1шт.

8

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

Incl 24

1шт.

9

201-357

HYD CONNECTOR,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

Incl 24

1шт.

10

87385244

BRACKET

Harness Tube Support

1шт.

11

87389849

SUPPORT ASSY.

Brake Line

1шт.

12

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

1шт.

13

87000230

PLATE

Hose Clamp

1шт.

14

87388134

HYD TUBE,7.747mm ID x 0.375mm OD x 940, 466mm L

Left Service Brake

1шт.

15

87678376

TUBE,.375" OD

Right Park Brake

1шт.

16

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

6шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

18

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

19

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

20

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

1шт.

21

87544714

HYD TUBE,0.375" OD

Right Service Brake

1шт.

22

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

2шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

24

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

9шт.
